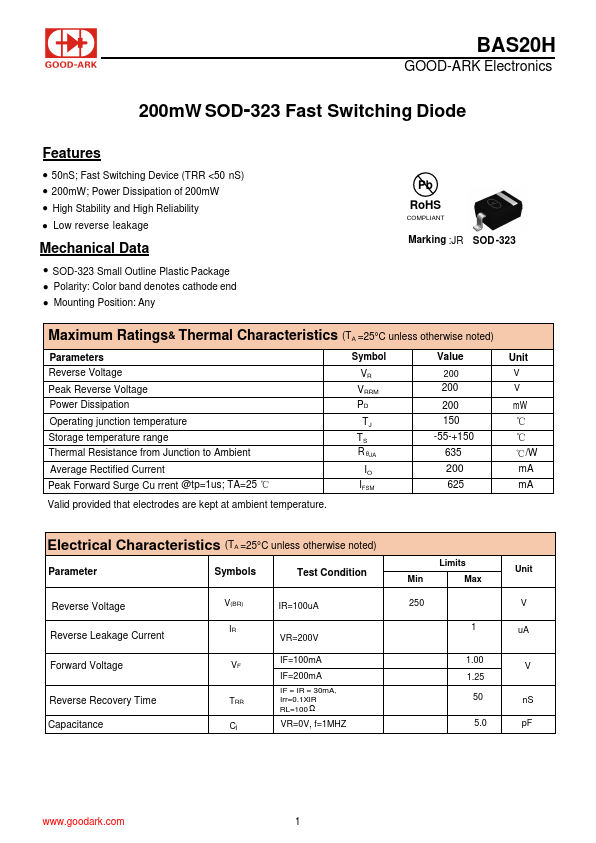

BAS20H
Features
- 50n S; Fast Switching Device (TRR <50 n S)
- 200m W; Power Dissipation of 200m W
- High Stability and High Reliability
- Low reverse leakage
Mechanical Data

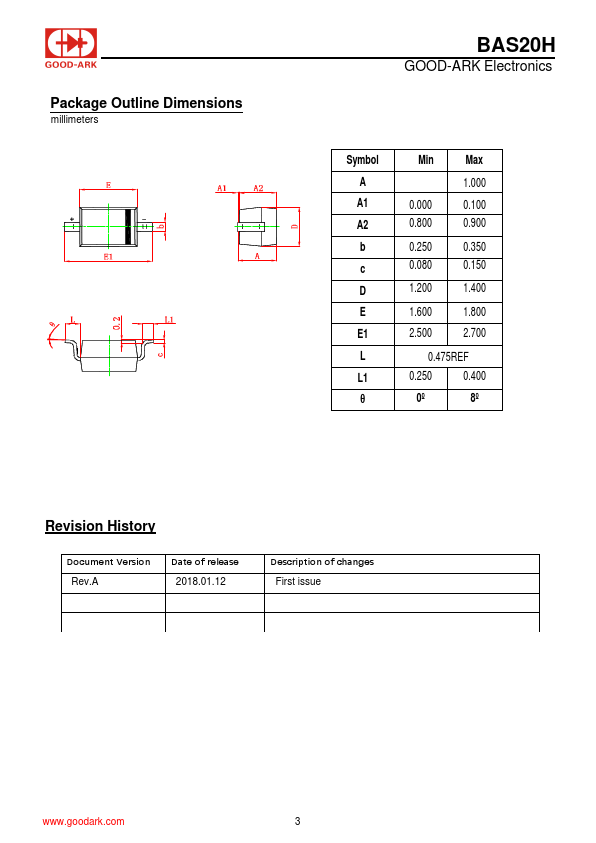

- SOD-323 Small Outline Plastic Package
- Polarity: Color band denotes cathode end
- Mounting Position: Any
Pb Ro HS
PLIANT
Marking :JR SOD -323
Maximum Ratings& Thermal Characteristics (TA =25°C unless otherwise noted)
Parameters Reverse Voltage Peak Reverse Voltage Power Dissipation Operating junction temperature Storage temperature range Thermal Resistance from Junction to Ambient Average Rectified Current Peak Forward Surge Cu rrent @tp=1us; TA=25 ℃
Symbol VR VRRM PD TJ TS R θJA
IO IFSM
Value 200 200 200 150
-55-+150 635 200 625
Valid provided that electrodes are kept at ambient temperature.
Unit V V m W ℃ ℃ ℃/W m A m A

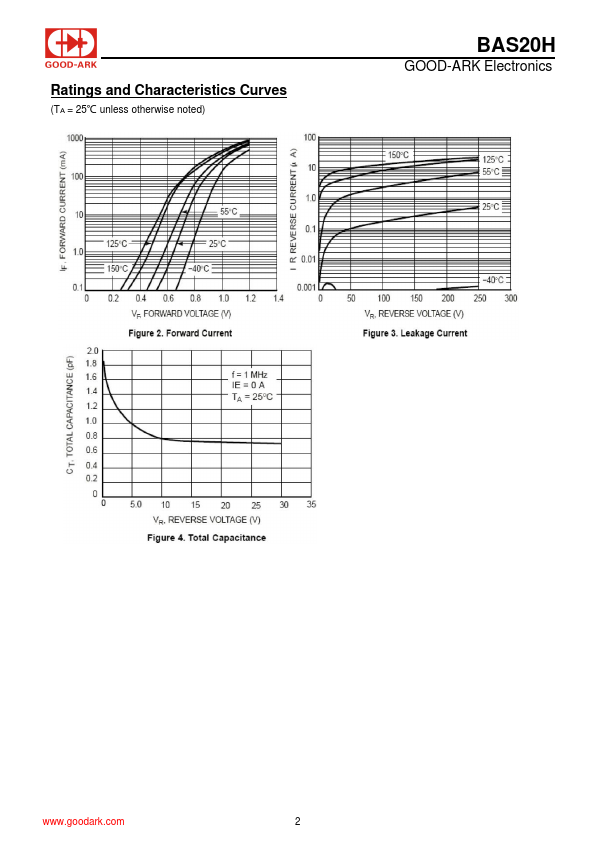

Electrical Characteristics (TA =25°C unless otherwise noted)
Parameter
Symbols
Test Condition
Reverse Voltage Reverse Leakage Current Forward Voltage Reverse Recovery Time Capacitance
V(BR) IR...
