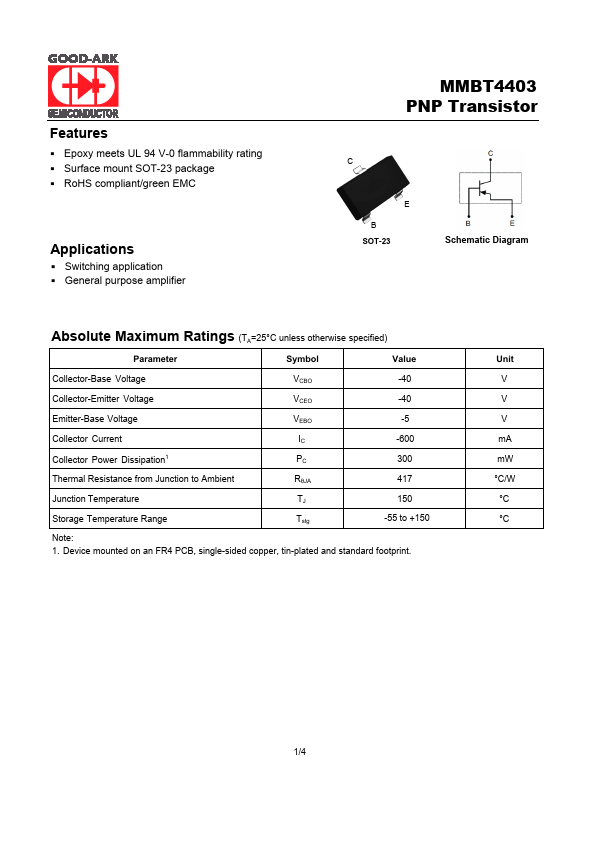

Datasheet Summary
Features
- Epoxy meets UL 94 V-0 flammability rating
- Surface mount SOT-23 package
- RoHS pliant/green EMC li ations
- Switching application
- General purpose amplifier
MMBT4403 PNP Transistor
B SOT-23
Schematic Diagram bsolute Maximum atin s (TA=25°C unless otherwise specified)
Parameter
Symbol
Value
Collector-Base Voltage
VCBO
-40
Collector-Emitter Voltage
VCEO
-40
Emitter-Base Voltage
VEBO
-5
Collector Current
Collector Power Dissipation1
Thermal Resistance from Junction to Ambient
RθJA
-600 300 417
Junction Temperature Storage Temperature Range
Tstg
-55 to +150
1. nd standard...
