GM66101 Datasheet PDF (1A ULTRA LOW-DROPOUT VOLTAGE REGULATORS)

GM66101 - 1A ULTRA LOW-DROPOUT VOLTAGE REGULATORS

This page provides the datasheet information for the GM66101, a member of the GM66102 1A ULTRA LOW-DROPOUT VOLTAGE REGULATORS family.

Description

The GM66100/1/2 series are 1A ultra low-dropout linear voltage regulators that provide low-voltage, high output current from an extremely small package.

The GM66100/1/2 offers extremely low dropout (typically 410 m V at 1A) and low ground current (typically 12mA at 1A).

Features

Fixed and adjustable output voltages Typical 410mV Dropout Voltage @ 1A 1A minimum guaranteed output current Accurate 1% Guaranteed Tolerance Current limiting and thermal shutdown Reverse-battery Protection Reversed leakage protection Fast Transient Response.

Datasheet Details

Part number	GM66101
Manufacturer	Gamma
File Size	181.68 KB
Description	1A ULTRA LOW-DROPOUT VOLTAGE REGULATORS
Datasheet	GM66101 Datasheet

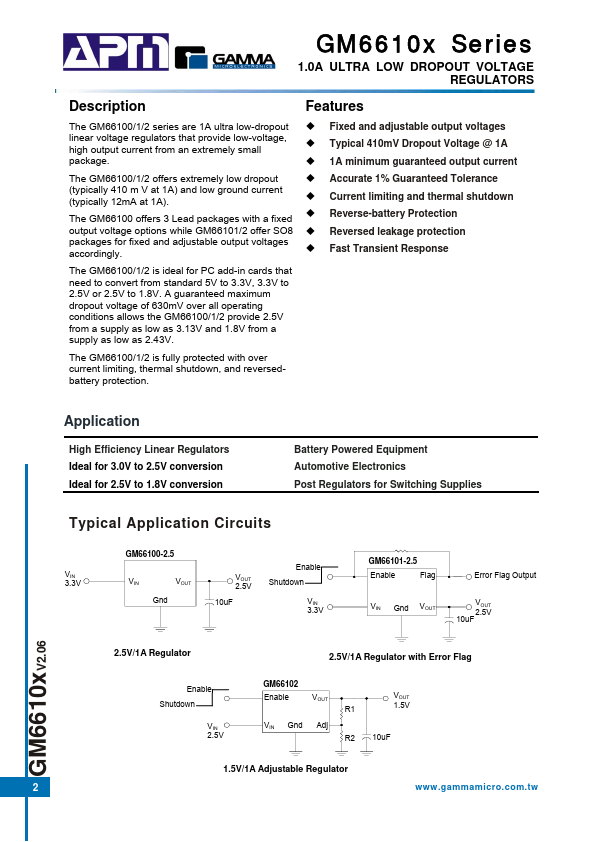

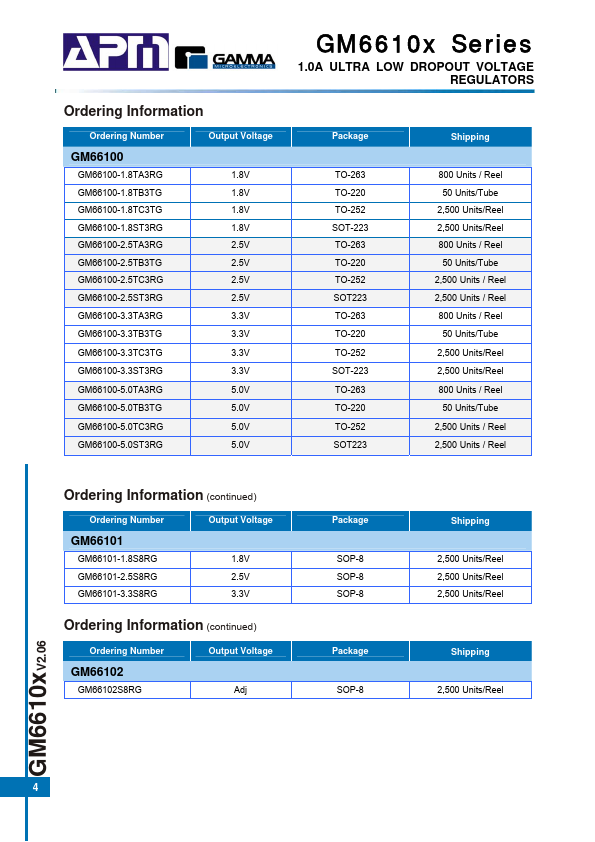

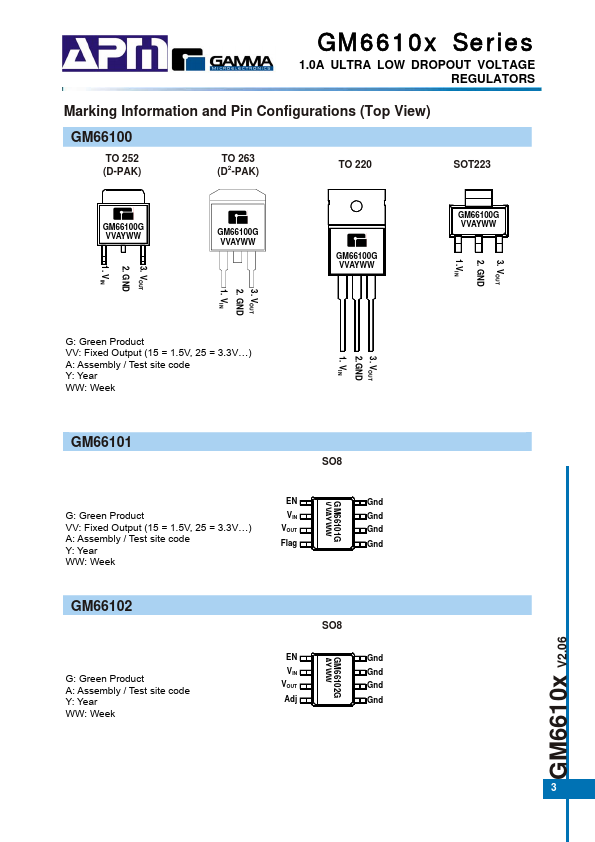

Additional preview pages of the GM66101 datasheet.

📁 Similar Datasheet

GM66102 - 1A ULTRA LOW-DROPOUT VOLTAGE REGULATORS (Gamma Microelectronics)

GM66150 - 1.5A ULTRA LOW-DROPOUT REGULATOR (Gamma Microelectronics)

GM66151 - 1.5A ULTRA LOW-DROPOUT REGULATOR (Gamma Microelectronics)

GM66152 - 1.5A ULTRA LOW-DROPOUT REGULATOR (Gamma Microelectronics)

GM66153 - 1.5A ULTRA LOW-DROPOUT REGULATOR (Gamma Microelectronics)

GM66015 - 1.5A LOW DROPOUT PRECISION REGULATOR (Gamma Microelectronics)

GM66300 - 3A ULTRA LOW-DROPOUT REGULATOR (Gamma Microelectronics)

GM66301 - 3A ULTRA LOW-DROPOUT REGULATOR (Gamma Microelectronics)

GM66302 - 3A ULTRA LOW-DROPOUT REGULATOR (Gamma Microelectronics)

GM66500 - 5A ULTRA LOW - DROPOUT REGULATOR (Gamma Microelectronics)

Full PDF Text Transcription

Click to expand full text

GM6610x Series 1.0A ULTRA LOW DROPOUT VOLTAGE REGULATORS Description The GM66100/1/2 series are 1A ultra low-dropout linear voltage regulators that provide low-voltage, high output current from an extremely small package. The GM66100/1/2 offers extremely low dropout (typically 410 m V at 1A) and low ground current (typically 12mA at 1A). The GM66100 offers 3 Lead packages with a fixed output voltage options while GM66101/2 offer SO8 packages for fixed and adjustable output voltages accordingly. The GM66100/1/2 is ideal for PC add-in cards that need to convert from standard 5V to 3.3V, 3.3V to 2.5V or 2.5V to 1.8V. A guaranteed maximum dropout voltage of 630mV over all operating conditions allows the GM66100/1/2 provide 2.5V from a supply as low as 3.13V and 1.8V from a supply as low as 2.
