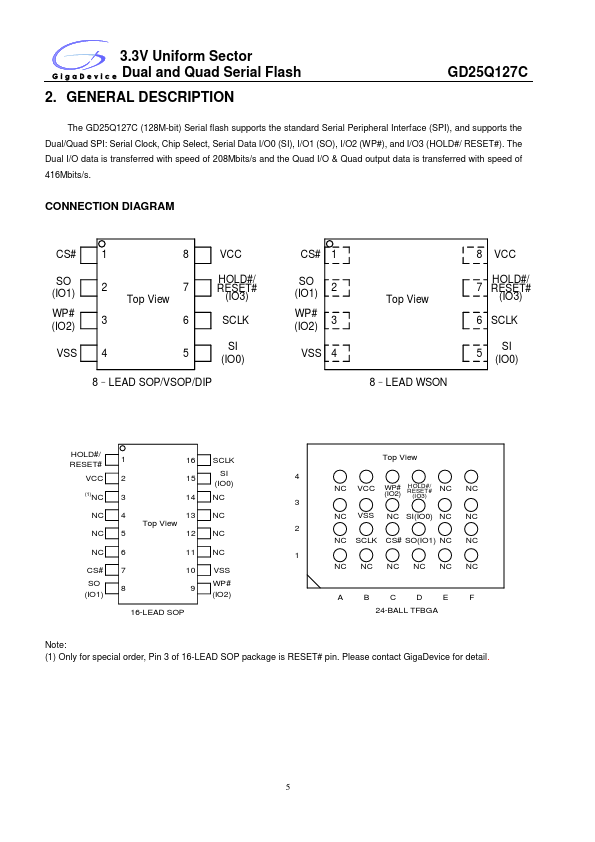

GD25Q127C Description
GD25Q127C The GD25Q127C (128M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#/ RESET#). The Dual I/O data is transferred with speed of 208Mbits/s and the Quad I/O & Quad output data is transferred with speed of 416Mbits/s.

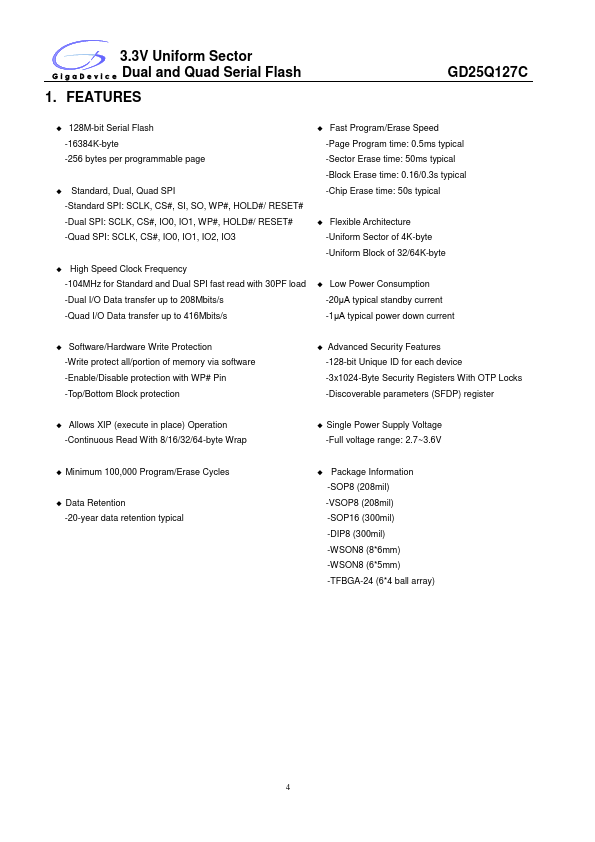

GD25Q127C Key Features
- 128M-bit Serial Flash -16384K-byte -256 bytes per programmable page
- Standard, Dual, Quad SPI -Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#/ RESET# -Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#
- High Speed Clock Frequency -104MHz for Standard and Dual SPI fast read with 30PF load -Dual I/O Data transfer up to 208M
- Fast Program/Erase Speed -Page Program time: 0.5ms typical -Sector Erase time: 50ms typical -Block Erase time: 0.16/0.3s
- Flexible Architecture -Uniform Sector of 4K-byte -Uniform Block of 32/64K-byte
- Low Power Consumption -20μA typical standby current -1μA typical power down current
- Software/Hardware Write Protection -Write protect all/portion of memory via software -Enable/Disable protection with WP#
- Advanced Security Features -128-bit Unique ID for each device -3x1024-Byte Security Registers With OTP Locks -Discoverab
- Allows XIP (execute in place) Operation -Continuous Read With 8/16/32/64-byte Wrap
- Single Power Supply Voltage -Full voltage range: 2.7~3.6V
