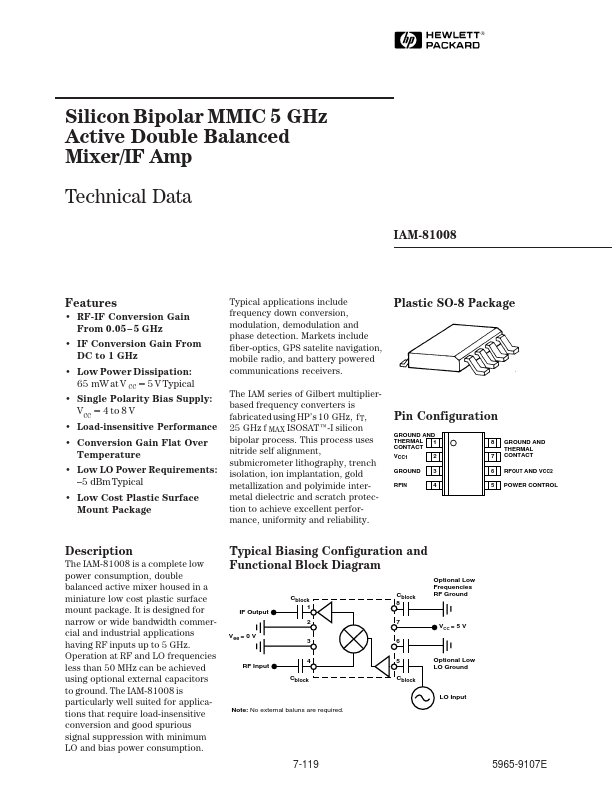

Silicon Bipolar MMIC 5␣ GHz Active Double Balanced Mixer/IF␣ Amp Technical Data Features - RF-IF Conversion Gain From 0.05- 5 GHz - IF Conversion Gain From DC to 1 GHz - Low Power Dissipation: 65␣ m W at V CC = 5 V Typical - Single Polarity Bias Supply: V = 4 to 8 V - Load-insensitive Performance - Conversion Gain Flat Over Temperature - Low LO Power Requirements: - 5␣ d Bm Typical - Low Cost Plastic Surface Mount Package Typical applications include frequency down conversion, modulation, demodulation and phase detection. Markets include fiber-optics, GPS satelite navigation, mobile radio, and battery powered munications receivers. The IAM series of Gilbert multiplierbased frequency converters is fabricated using HP’s 10␣ GHz, f T, 25␣ GHz f MAX ISOSAT™-I silicon bipolar process. This process uses nitride self alignment, submicrometer lithography, trench isolation, ion implantation, gold metallization and polyimide intermetal dielectric and scratch protection to achieve excellent performance, uniformity and reliability. Plastic SO-8 Package Pin Configuration GROUND AND THERMAL 1 CONTACT VCC1 GROUND 3 RFIN 8 GROUND AND THERMAL 7 CONTACT 6 RFOUT AND VCC2 5 POWER CONTROL Description The IAM-81008 is a plete low power consumption, double balanced active mixer housed in a miniature low cost plastic surface mount package. It is designed for narrow or wide bandwidth mercial and industrial applications having RF inputs up to 5 GHz. Operation at RF and LO frequencies less than 50 MHz can be achieved using optional external capacitors to ground. The IAM-81008 is particularly well suited for applications that require load-insensitive conversion and good spurious signal suppression with minimum LO and bias power consumption. Typical Biasing Configuration and Functional Block Diagram IF Output Vee = 0 V Cblock 1 2 Cblock...
