IAM-82028 - Active Double Balanced Mixer/IF Amp

General Description

The IAM-82028 is a complete moderate-power double-balanced active mixer housed in a miniature ceramic hermetic surface mount package.

It is designed for narrow or wide bandwidth commercial, industrial and military applications having RF inputs up to 5 GHz and IF outputs from DC to 2 GHz.

Key Features

  • 15 dB RF-IF Conversion Gain from 0.05 - 5 GHz.
  • IF Output from DC to 2 GHz.
  • IF Output PldB up to +12 dBm.
  • Single Polarity Bias Supply: VCC = 7 to 13 V.
  • Load-Insensitive Performance.
  • Conversion Gain Flat Over Temperature.
  • Low LO Power Requirements: 0 dBm Typical.
  • Low RF to IF Feedthrough, Low LO Leakage.
  • Hermetic Ceramic Surface Mount Package.

📥 Download Datasheet

Datasheet Details

Part number IAM-82028
Manufacturer HP
File Size 53.49 KB
Description Active Double Balanced Mixer/IF Amp
Datasheet download datasheet IAM-82028 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IAM-20381 High Performance 3-Axis MotionTracking Accelerometer TDK
IAM-20381HT High Performance Automotive Grade-2 3-Axis Accelerometer TDK
IAM-20680 High Performance Automotive 6-Axis MotionTracking TDK
IAM-20680HP High Performance Automotive 6-Axis MotionTracking TDK
IAM-20680HT High Performance Automotive 6-Axis MotionTracking TDK

Other Datasheets by HP

Part Number Description
IAM-82008 Active Double Balanced Mixer/IF Amp
IAM-81008 Active Double Balanced Mixer/IF Amp
IAM-81028 Active Double Balanced Mixer/IF Amp

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

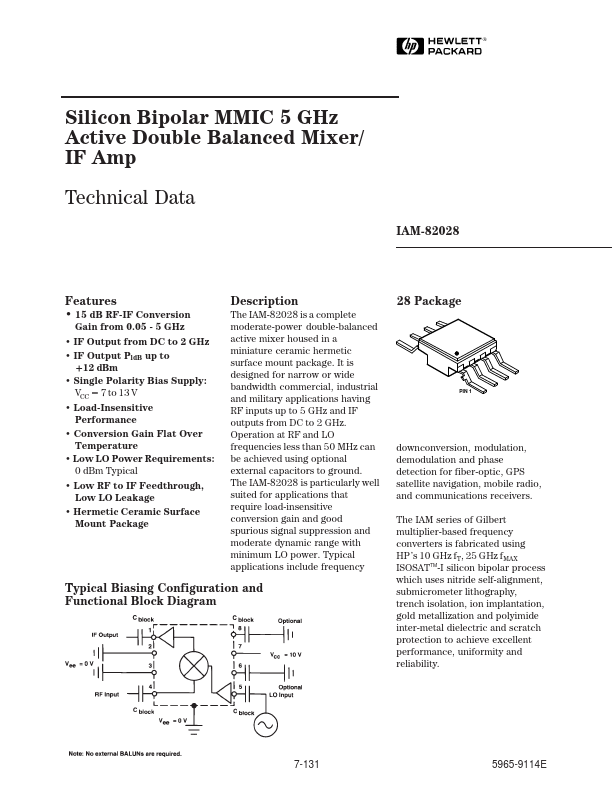

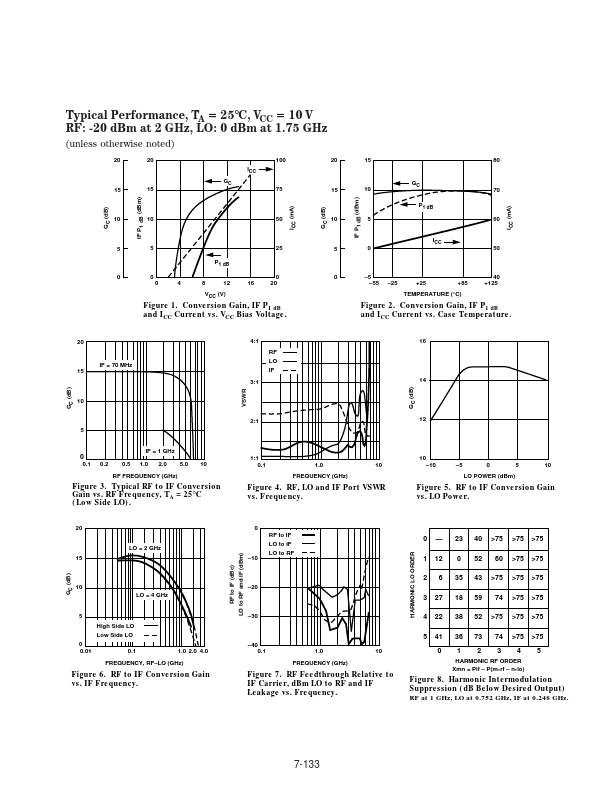

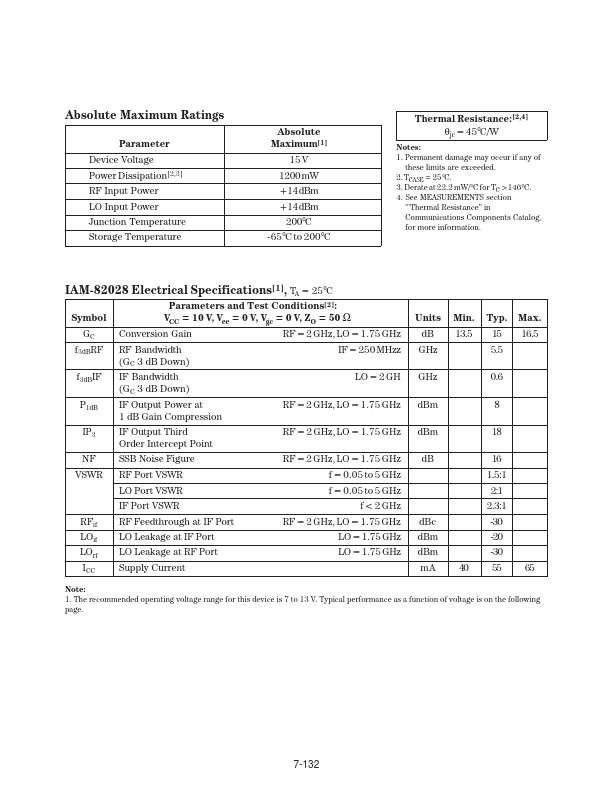

Silicon Bipolar MMIC 5 GHz Active Double Balanced Mixer/ IF Amp Technical Data IAM-82028 Features • 15 dB RF-IF Conversion Gain from 0.05 - 5 GHz • IF Output from DC to 2 GHz • IF Output PldB up to +12 dBm • Single Polarity Bias Supply: VCC = 7 to 13 V • Load-Insensitive Performance • Conversion Gain Flat Over Temperature • Low LO Power Requirements: 0 dBm Typical • Low RF to IF Feedthrough, Low LO Leakage • Hermetic Ceramic Surface Mount Package Description The IAM-82028 is a complete moderate-power double-balanced active mixer housed in a miniature ceramic hermetic surface mount package. It is designed for narrow or wide bandwidth commercial, industrial and military applications having RF inputs up to 5 GHz and IF outputs from DC to 2 GHz.
