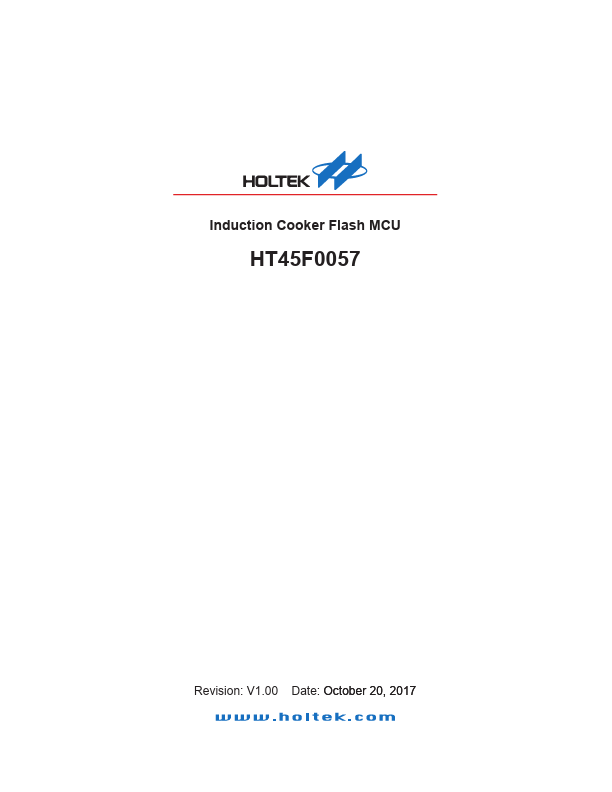

HT45F0057
HT45F0057 is Induction Cooker Flash MCU manufactured by Holtek Semiconductor.
Induction Cooker Flash MCU
Revision: V1.30 Date: May 17, 2022
HT45F0057 Induction Cooker Flash MCU

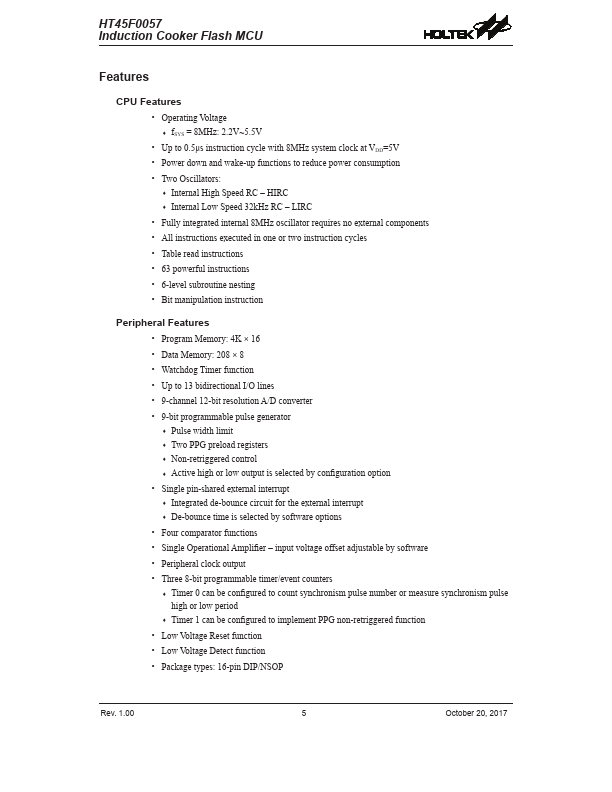

Features
CPU Features
- Operating Voltage
- f SYS = 8MHz: 2.2V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Two Oscillators
- Internal High Speed RC
- HIRC
- Internal Low Speed 32k Hz RC
- LIRC
- Fully integrated internal 8MHz oscillator requires no external ponents
- All instructions executed in one or two instruction cycles
- Table read instructions
- 63 powerful instructions
- 6-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Program Memory: 4K×16
- Data Memory: 208×8
- Watchdog Timer function
- Up to 13 bidirectional I/O lines
- 9-channel 12-bit resolution A/D converter
- 9-bit programmable pulse generator
- Pulse width limit
- Two PPG preload registers
- Non-retriggered...
