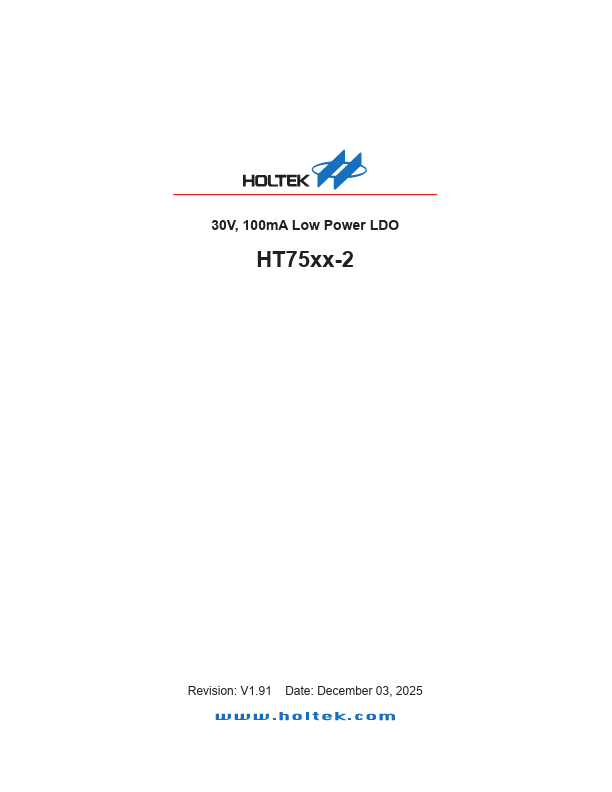

Datasheet Summary
30V, 100mA Low Power LDO
HT75xx-2
Revision: V1.91 Date: December 03, 2025
HT75xx-2 30V, 100mA Low Power LDO

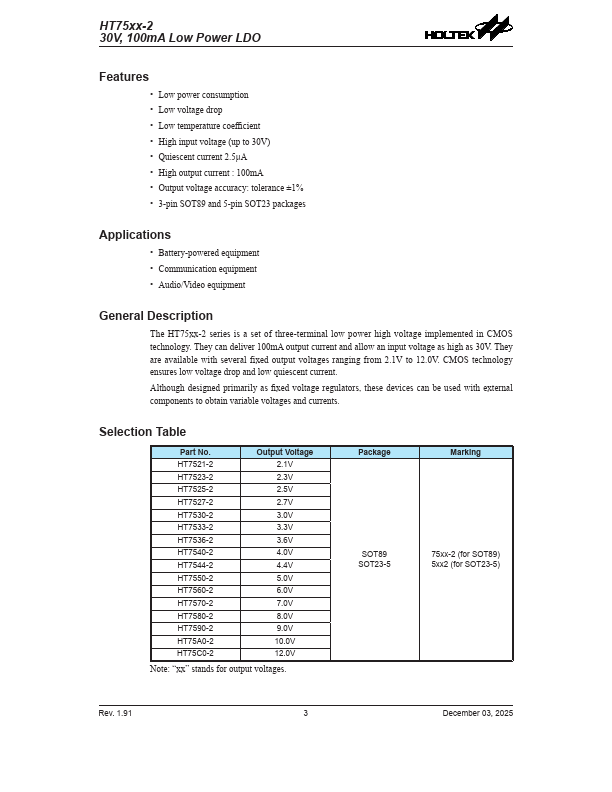

Features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- High input voltage (up to 30V)
- Quiescent current 2.5μA
- High output current : 100mA
- Output voltage accuracy: tolerance ±1%
- 3-pin SOT89 and 5-pin SOT23 packages
Applications
- Battery-powered equipment
- munication equipment
- Audio/Video equipment
General Description
The HT75xx-2 series is a set of three-terminal low power high voltage implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 30V. They are available with several fixed...
