HT7536-1 Datasheet (Holtek Semiconductor)

Part HT7536-1
Description 100mA Low Power LDO
Category LDO Regulator
Manufacturer Holtek Semiconductor
Size 730.58 KB
HT7536-1 Datasheet (PDF) Download
Pricing from 0.0061 USD, available from Worldway Electronics and Chipsmall Limited.
🏠
Holtek Semiconductor

HT7536-1 Overview

Key Specifications

Package: LSSOP
Length: 2.9 mm
Width: 1.6 mm
Max Operating Temp: 85 °C

Description

The HT75xx-1 series is a set of three-terminal low power high voltage implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 30V.

Key Features

  • Low power consumption
  • Low voltage drop
  • Low temperature coefficient
  • High input voltage (up to 30V)
  • Quiescent current 2.5μA

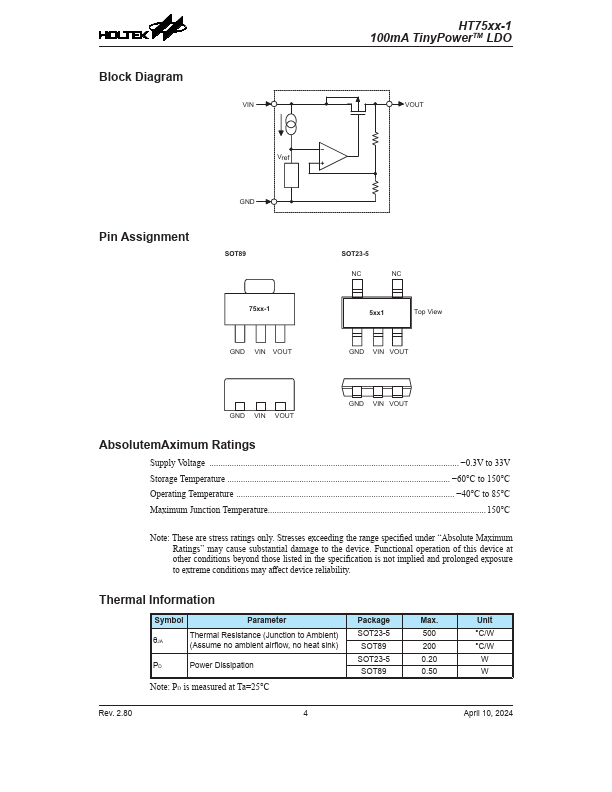

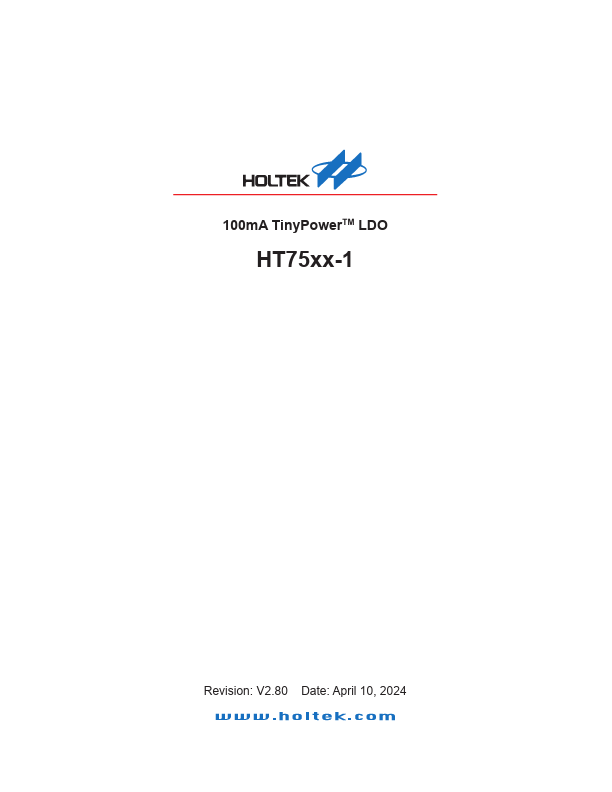

HT7536-1 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Worldway Electronics 24465 7+ : 0.0061 USD
10+ : 0.006 USD
100+ : 0.0058 USD
500+ : 0.0056 USD		 View Offer
Chipsmall Limited 380000 1+ : 0.16218 USD
10+ : 0.10812 USD
100+ : 0.06487 USD
500+ : 0.05947 USD		 View Offer
