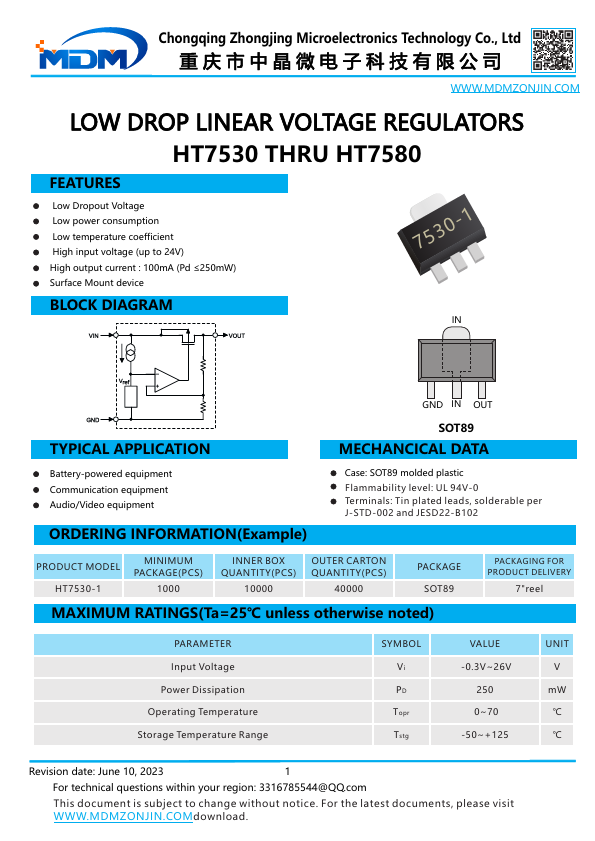

LOW DROP LINEAR VOLTAGE REGULATORS
HT7530 THRU HT7580
Features
Low Dropout Voltage Low power consumption Low temperature coefficient High input voltage (up to 24V) High output current : 100m A (Pd ≤250m W) Surface Mount device
BLOCK DIAGRAM
7530-1
GND IN OUT
TYPICAL APPLICATION
Battery-powered equipment munication equipment Audio/Video equipment
ORDERING INFORMATION(Example)
SOT89
MECHANCICAL DATA
Case: SOT89 molded plastic Flammability level: UL 94V-0 Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
PRODUCT MODEL HT7530-1
MINIMUM PACKAGE(PCS)
INNER BOX QUANTITY(PCS)
OUTER CARTON QUANTITY(PCS)
PACKAGE SOT89
PACKAGING FOR PRODUCT DELIVERY
7"reel
MAXIMUM RATINGS(Ta=25℃ unless otherwise noted)
PARAMETER Input Voltage Power Dissipation Operating Temperature Storage Temperature Range
SYMBOL Vi PD Topr Tstg
VALUE -0.3V~26V
250 0~70 -50~+125
UNIT V m W ℃ ℃
Revision date: June 10,...
