HT7536-1 Datasheet (WDJ semiconductor)

Part HT7536-1
Description LOW DROPOUT LINEAR REGULATOR
Category LDO Regulator
Manufacturer WDJ semiconductor
Size 10.26 MB
HT7536-1 Datasheet (PDF) Download
Pricing from 0.0061 USD, available from Worldway Electronics and Chipsmall Limited.
🏠
WDJ semiconductor

HT7536-1 Overview

Key Specifications

Package: LSSOP
Length: 2.9 mm
Width: 1.6 mm
Max Operating Temp: 85 °C

Description

HT75XX-1 series are a set of Low Dropout Linear Regulator ICs implemented in CMOS can withstand voltage 30V. And they are available with low voltage drop and low quiescent current,widely used in audio, video and communication appliances.

Key Features

  • Low Power Consumption
  • Low Voltage Drop
  • Low Temperature Coefficient
  • Withstanding Voltage 30V
  • Quiescent Current 1.8μA

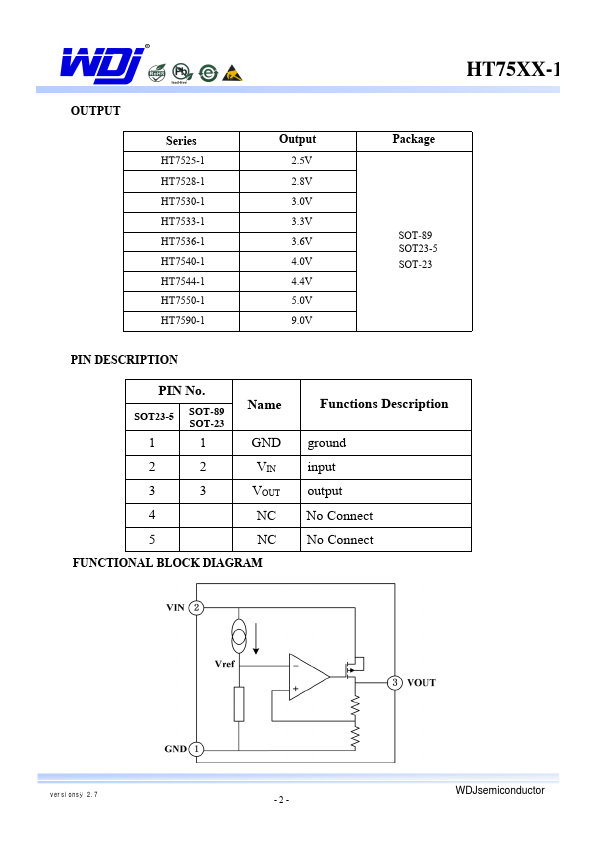

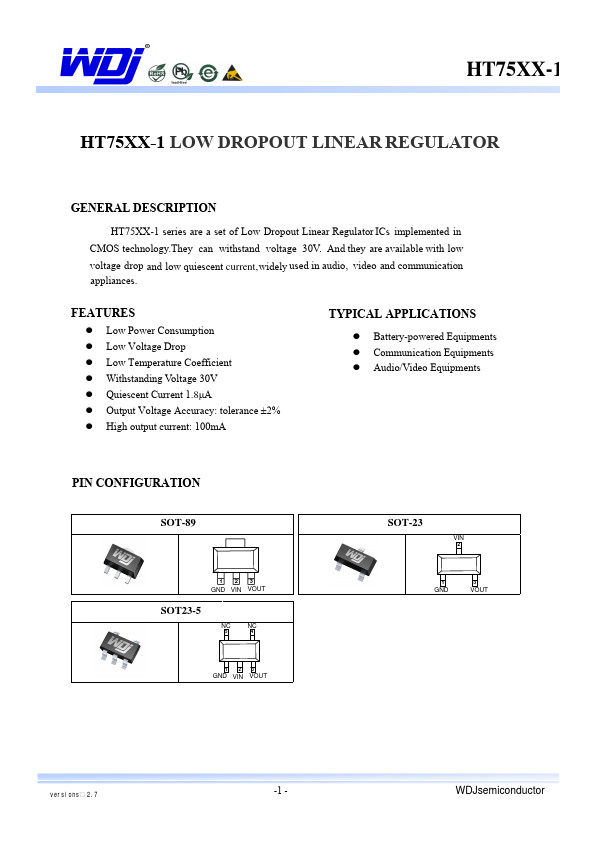

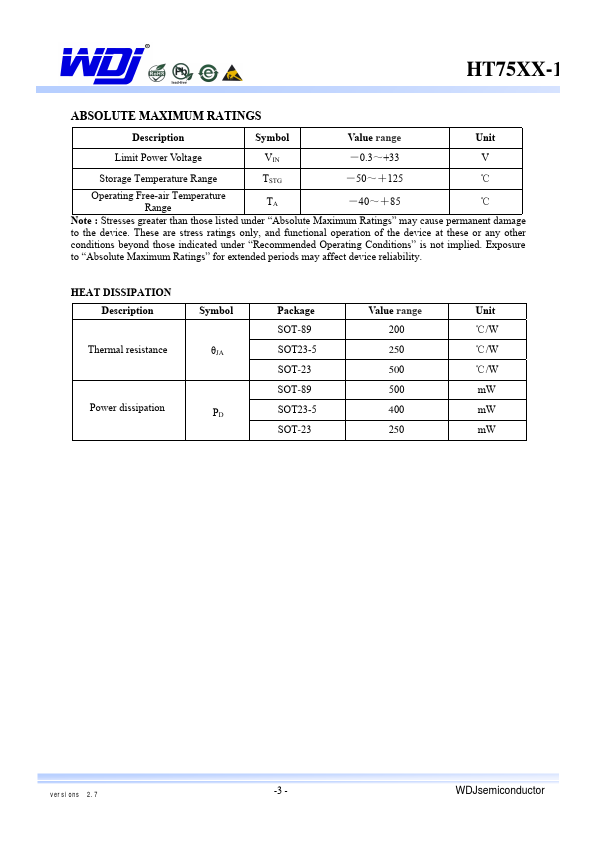

HT7536-1 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Worldway Electronics 24465 7+ : 0.0061 USD
10+ : 0.006 USD
100+ : 0.0058 USD
500+ : 0.0056 USD		 View Offer
Chipsmall Limited 380000 1+ : 0.16218 USD
10+ : 0.10812 USD
100+ : 0.06487 USD
500+ : 0.05947 USD		 View Offer
