HT7536-2 Datasheet (WDJ semiconductor)

Part HT7536-2
Description LOW DROPOUT LINEAR REGULATOR
Category LDO Regulator
Manufacturer WDJ semiconductor
Size 6.48 MB
HT7536-2 Datasheet (PDF) Download
Pricing from 0.1989 USD, available from Win Source and UnikeyIC.
🏠
WDJ semiconductor

HT7536-2 Overview

Key Specifications

Package: TO-92
Max Operating Temp: 85 °C
Min Operating Temp: -40 °C

Description

HT75XX-2 series are a set of Low Dropout Linear Regulator ICs implemented inCMOS can withstand voltage 30V. And they areavailable with lowvoltage drop and low quiescentcurrent, widely used in audio, video and communication appliances.

Key Features

  • Low Power Consumption
  • Low Voltage Drop
  • Low Temperature Coefficient
  • Withstanding Voltage 30V
  • Quiescent Current 1.5μA

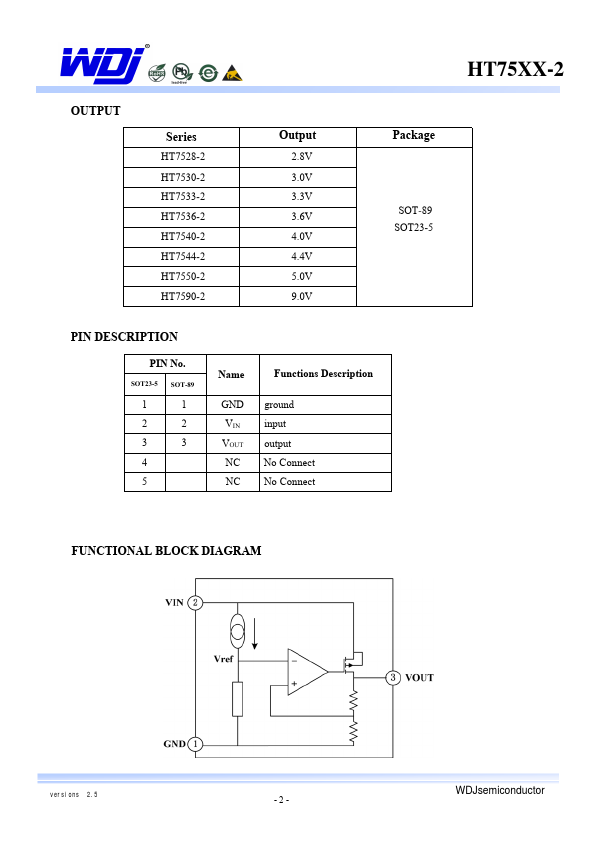

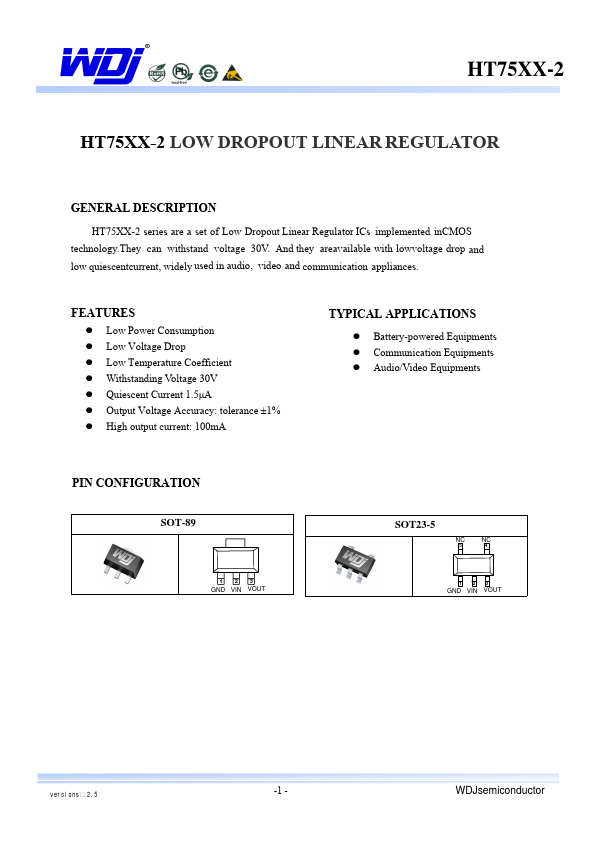

HT7536-2 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Win Source 7000 295+ : 0.1989 USD
710+ : 0.1632 USD
1100+ : 0.1582 USD
1510+ : 0.1531 USD		 View Offer
UnikeyIC 25000 5000+ : 0.065 USD
10000+ : 0.0636 USD
25000+ : 0.0623 USD		 View Offer
