HT7540-1 Datasheet (Holtek Semiconductor)

Part HT7540-1
Description 100mA Low Power LDO
Category LDO Regulator
Manufacturer Holtek Semiconductor
Size 730.58 KB
HT7540-1 Datasheet (PDF) Download
Pricing from 0.1686 USD, available from Win Source and Anlinkda.
🏠
Holtek Semiconductor

HT7540-1 Overview

Key Specifications

Description

The HT75xx-1 series is a set of three-terminal low power high voltage implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 30V.

Key Features

  • Low power consumption
  • Low voltage drop
  • Low temperature coefficient
  • High input voltage (up to 30V)
  • Quiescent current 2.5μA

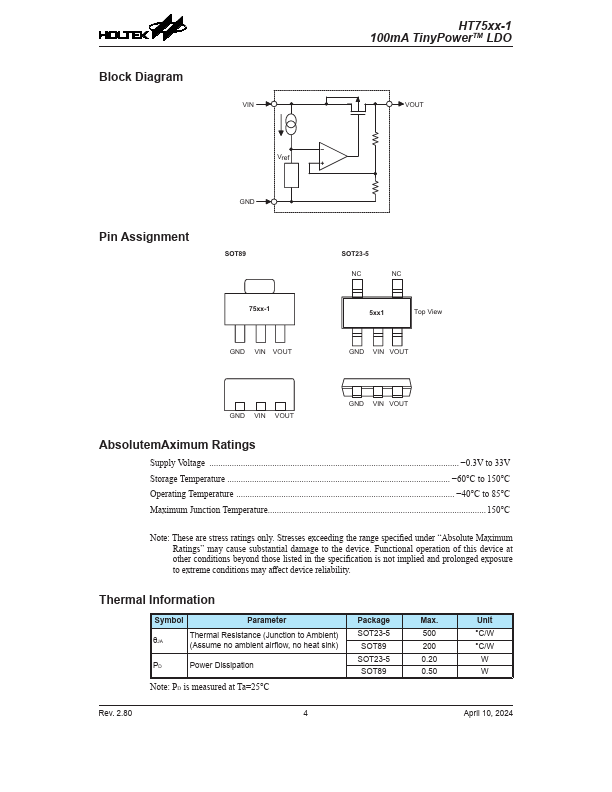

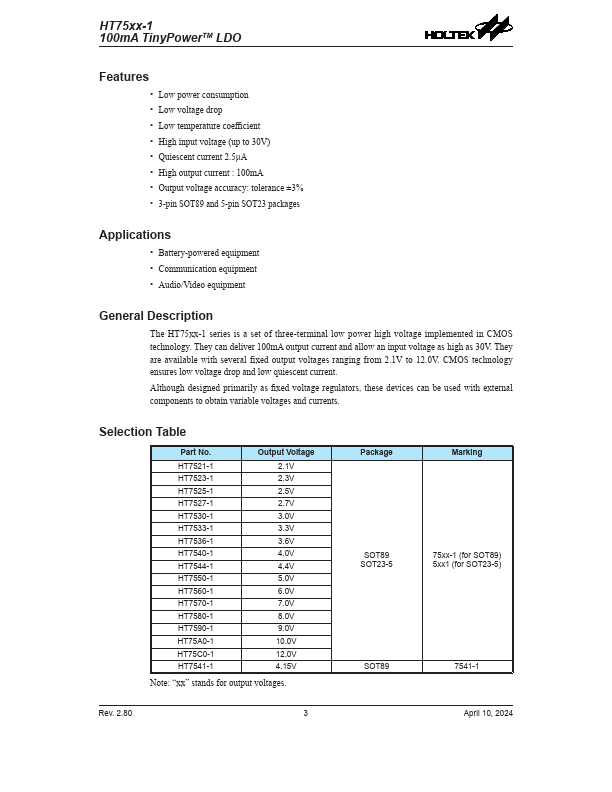

HT7540-1 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Win Source 35000 345+ : 0.1686 USD
835+ : 0.1386 USD
1295+ : 0.134 USD
1790+ : 0.1294 USD		 View Offer
Anlinkda 70697 1+ : 0.15 USD
10+ : 0.134 USD
100+ : 0.123 USD
1000+ : 0.11 USD		 View Offer
