HT7540-1 Datasheet (WDJ semiconductor)

Part HT7540-1
Description LOW DROPOUT LINEAR REGULATOR
Category LDO Regulator
Manufacturer WDJ semiconductor
Size 10.26 MB
HT7540-1 Datasheet (PDF) Download
Pricing from 0.1686 USD, available from Win Source and Anlinkda.
🏠
WDJ semiconductor

HT7540-1 Overview

Key Specifications

Description

HT75XX-1 series are a set of Low Dropout Linear Regulator ICs implemented in CMOS can withstand voltage 30V. And they are available with low voltage drop and low quiescent current,widely used in audio, video and communication appliances.

Key Features

  • Low Power Consumption
  • Low Voltage Drop
  • Low Temperature Coefficient
  • Withstanding Voltage 30V
  • Quiescent Current 1.8μA

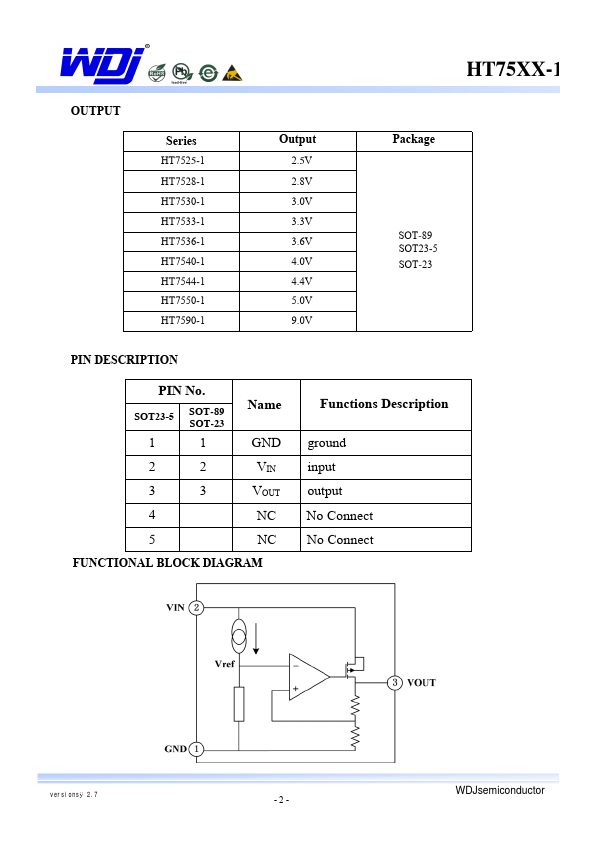

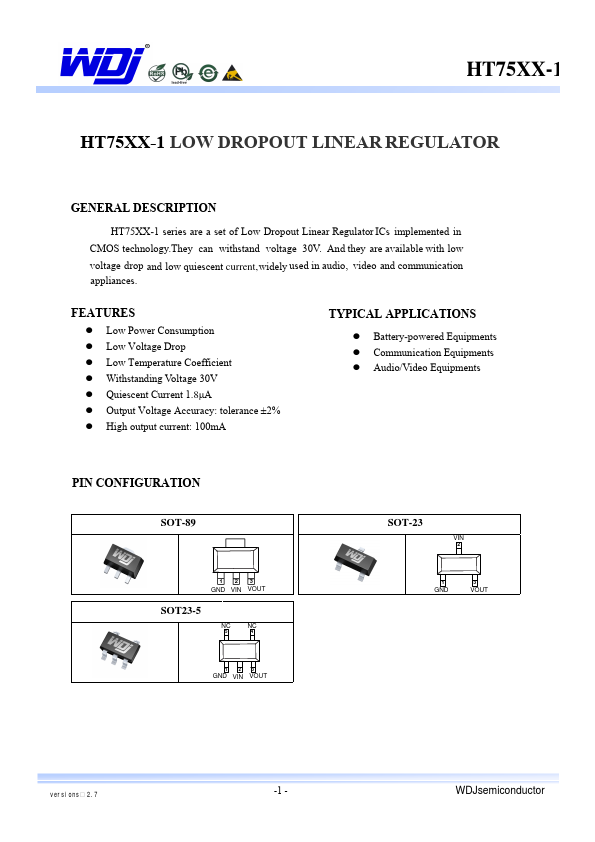

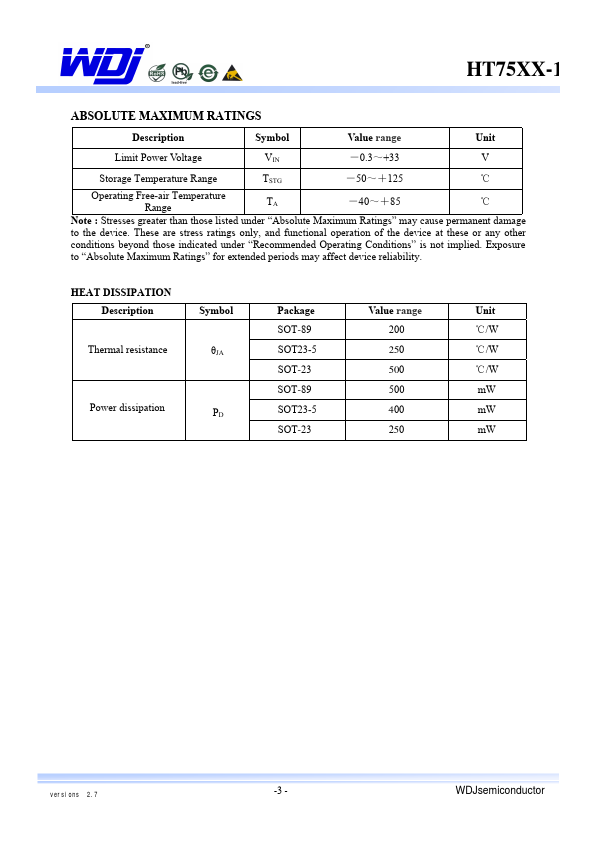

HT7540-1 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Win Source 35000 345+ : 0.1686 USD
835+ : 0.1386 USD
1295+ : 0.134 USD
1790+ : 0.1294 USD		 View Offer
Anlinkda 70697 1+ : 0.15 USD
10+ : 0.134 USD
100+ : 0.123 USD
1000+ : 0.11 USD		 View Offer

Related Datasheets

Part Number Manufacturer Description
HT7540 MLS Microelectronics 150mA Low Power Consumption LDO
HT7540-2 UMW 45V Low Voltage Low Dropout Linear Regulator
HT7540-7 Holtek Semiconductor 100mA TinyPower LDO
HT7540-1 Holtek Semiconductor 100mA Low Power LDO
HT7540-3 Holtek Semiconductor 100mA TinyPower LDO

HT7540-1 Datasheet

🏠
