HT7540-2 Datasheet (WDJ semiconductor)

Part HT7540-2
Description LOW DROPOUT LINEAR REGULATOR
Category LDO Regulator
Manufacturer WDJ semiconductor
Size 6.48 MB
HT7540-2 Datasheet (PDF) Download
Pricing from 0.0633 USD, available from UnikeyIC and Anlinkda.
🏠
WDJ semiconductor

HT7540-2 Overview

Description

HT75XX-2 series are a set of Low Dropout Linear Regulator ICs implemented inCMOS can withstand voltage 30V. And they areavailable with lowvoltage drop and low quiescentcurrent, widely used in audio, video and communication appliances.

Key Features

  • Low Power Consumption
  • Low Voltage Drop
  • Low Temperature Coefficient
  • Withstanding Voltage 30V
  • Quiescent Current 1.5μA

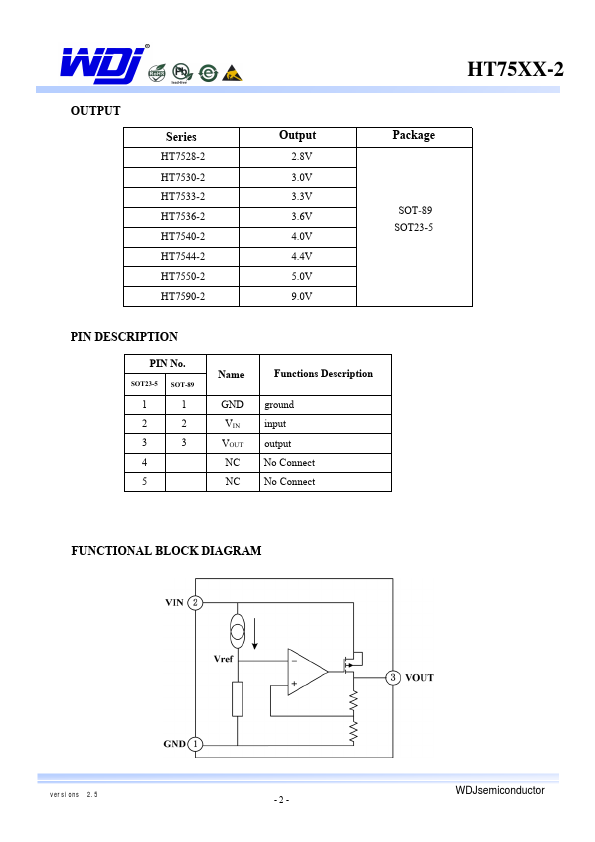

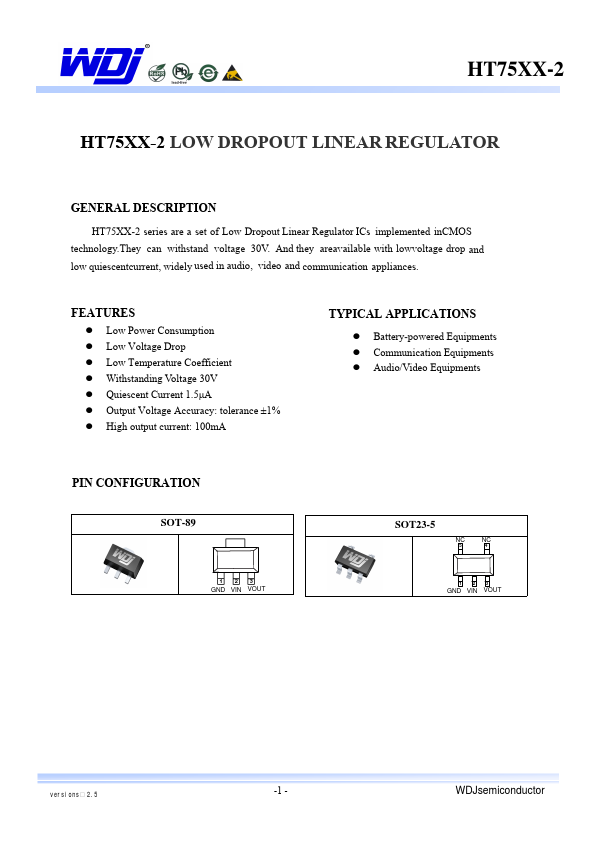

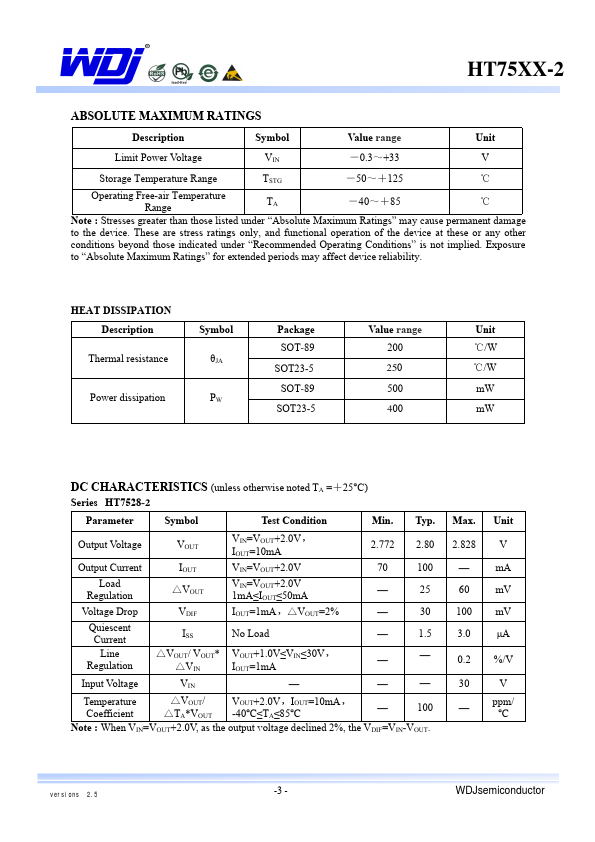

HT7540-2 datasheet preview
