HT7550-3 Overview
Key Specifications
Length: 4.55 mm
Width: 2.495 mm
Max Operating Temp: 85 °C
Min Operating Temp: -40 °C

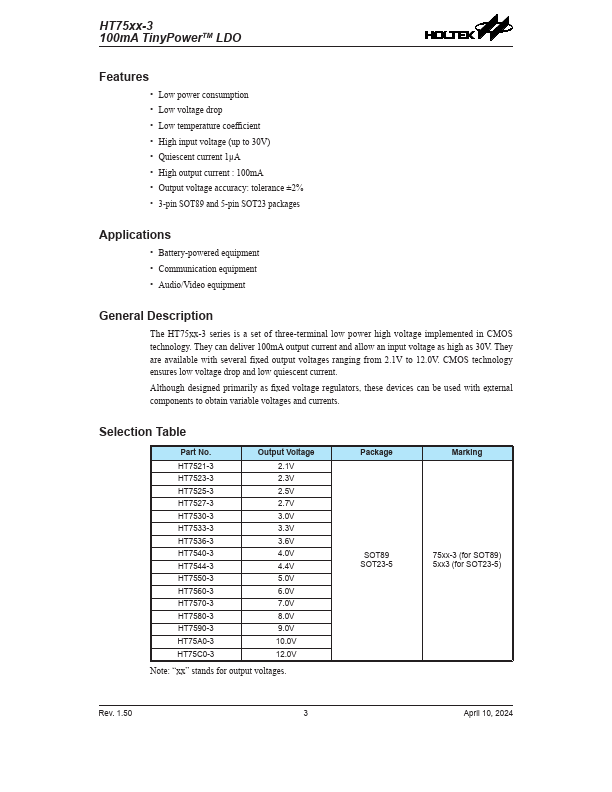

Description
The HT75xx-3 series is a set of three-terminal low power high voltage implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 30V.
Key Features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- High input voltage (up to 30V)
- Quiescent current 1μA
- High output current : 100mA
- Output voltage accuracy: tolerance ±2%
