HT7850 - 500mA TinyPower LDO

This page provides the datasheet information for the HT7850, a member of the HT78xx 500mA TinyPower LDO family.

Product Overview

Holtek Semiconductor

📥 Download Datasheet

HT7850 500mA TinyPower LDO by Holtek Semiconductor - Datasheet Preview — Datasheet preview – HT7850

Datasheet Details

Part number	HT7850
Manufacturer	Holtek Semiconductor
File Size	309.48 KB
Description	500mA TinyPower LDO
Datasheet	HT7850 Datasheet

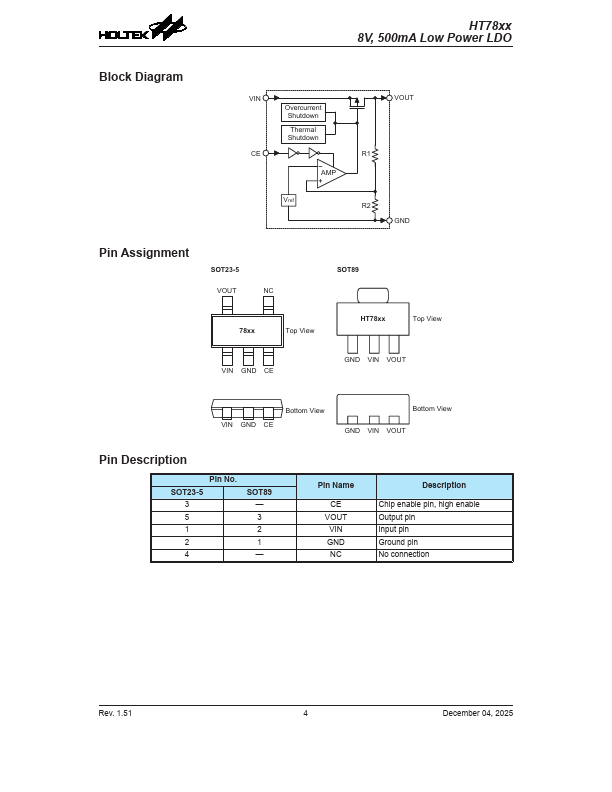

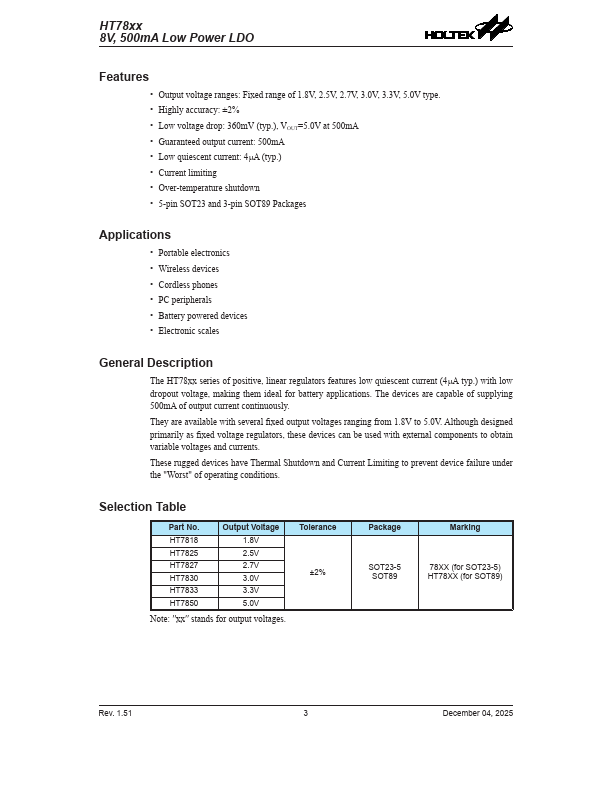

Additional preview pages of the HT7850 datasheet.

HT7850 Product details

Description

The HT78xx series of positive, linear regulators

Features

Output voltage ranges: Fixed range of 1.8V, 2.5V, 2.7V, 3.0V, 3.3V, 5.0V type.
Highly accuracy: ±2%.
Low voltage drop: 360mV (typ. ), VOUT=5.0V at 500mA.
Guaranteed output current: 500mA.
Low quiescent current: 4mA (typ. ).
Current limiting.
Over-temperature shutdown.
5-pin SOT23 and 3-pin SOT89 Packages.
