N156BGE-P21
N156BGE-P21 is TFT Liquid Crystal Display manufactured by INNOLUX.

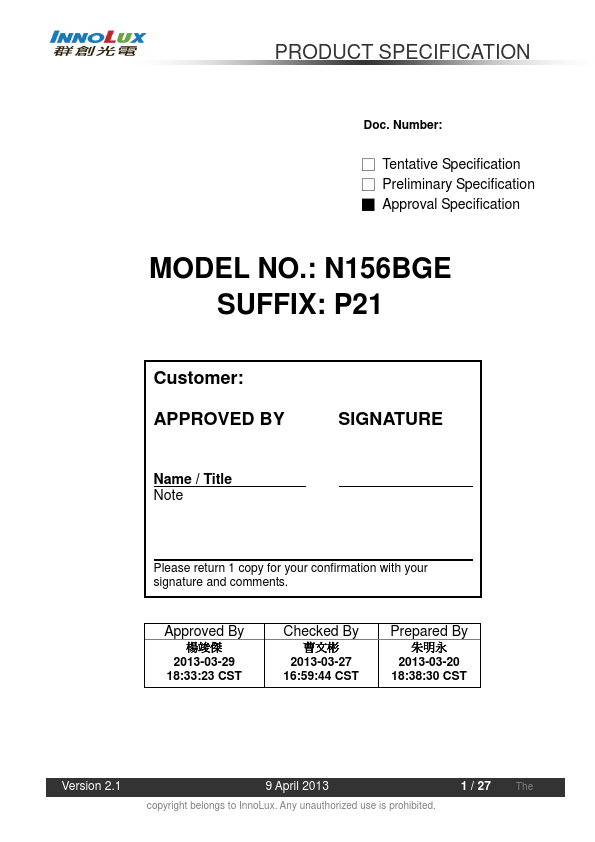

PRODUCT SPECIFICATION
Doc. Number:
- Tentative Specification
- Preliminary Specification
- Approval Specification
MODEL NO.: N156BGE SUFFIX: P21
Customer: APPROVED BY
Name / Title Note
SIGNATURE
Please return 1 copy for your confirmation with your signature and ments.
Approved By
楊竣傑
2013-03-29 18:33:23 CST
Checked By
曹文彬
2013-03-27 16:59:44 CST
Prepared By
朱明永
2013-03-20 18:38:30 CST
Version 2.1
9 April 2013
1 / 27 The copyright belongs to InnoLux. Any unauthorized use is prohibited.

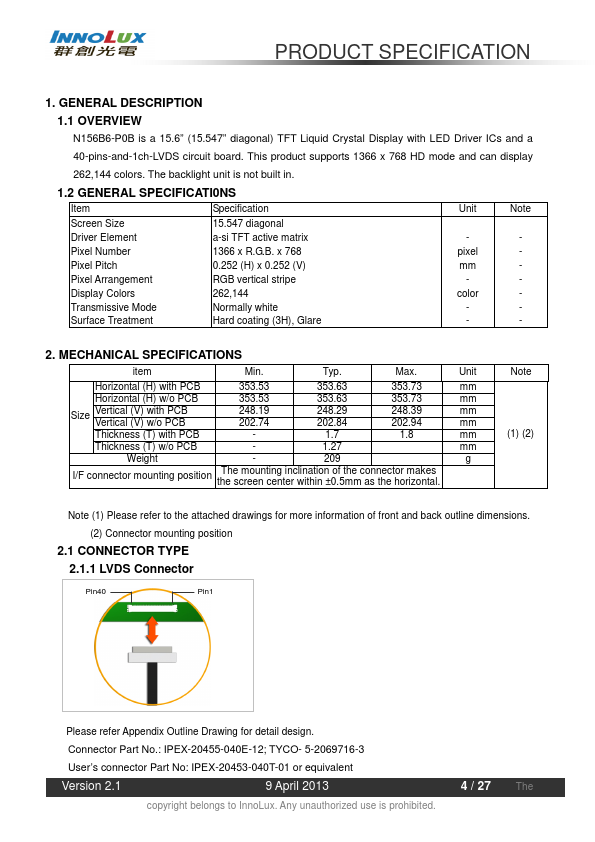

PRODUCT SPECIFICATION
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N156B6-P0B is a 15.6” (15.547” diagonal) TFT Liquid Crystal Display with LED Driver ICs and a
40-pins-and-1ch-LVDS circuit board....
