C3514 - 2SC3514

Inchange Semiconductor

General Description

High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 180V(Min) Good Linearity of hFE Complement to Type 2SA1383 APPLICATIONS Adudio frequency power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 180 V VCEO Collector-Em

📥 Download Datasheet

C3514 2sc3514 by Inchange Semiconductor - Datasheet Preview

Datasheet Details

Part number	C3514
Manufacturer	Inchange Semiconductor
File Size	103.66 KB
Description	2SC3514
Datasheet	C3514 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
C3515	2SC3515	Toshiba
C3518-Z	SILICON POWER TRANSISTOR	Renesas
C3519	2SC3519	Mospec Semiconductor
C350	Phase Control SCR	Powerex Power Semiconductors
C3500	Silicon Power Transistor	ETC

Other Datasheets by Inchange Semiconductor

Part Number	Description
C3563	2SC3563

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

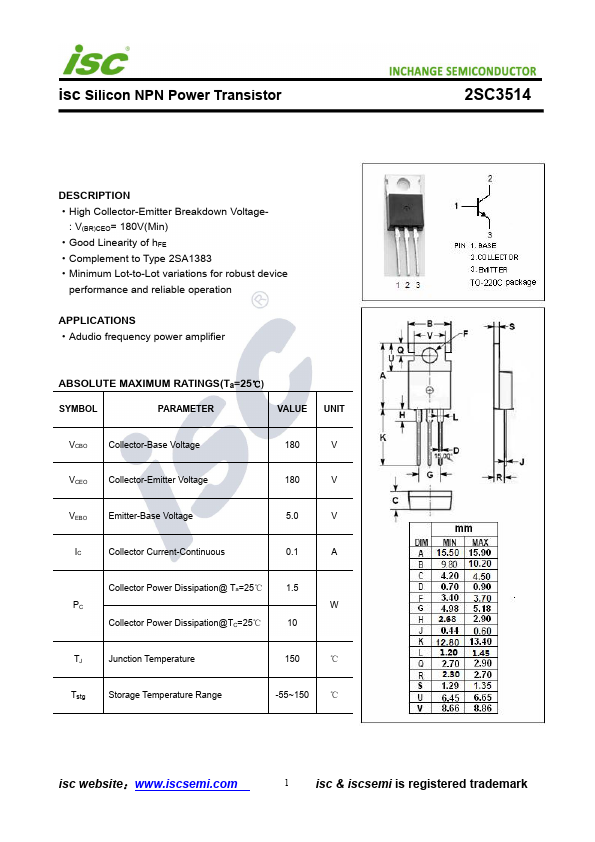

INCHANGE Semiconductor isc Silicon NPN Power Transistor isc Product Specification 2SC3514 DESCRIPTION ·High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 180V(Min) ·Good Linearity of hFE ·Complement to Type 2SA1383 APPLICATIONS ·Adudio frequency power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 180 V VCEO Collector-Emitter Voltage 180 V VEBO Emitter-Base Voltage 5.0 V IC Collector Current-Continuous 0.1 A Collector Power Dissipation@ Ta=25℃ 1.5 PC W Collector Power Dissipation@TC=25℃ 10 TJ Junction Temperature 150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc Website：www.iscsemi.cn Free Datasheet http://www.datasheet4u.
