BAR66 - Silicon PIN Diode Array

📥 Download Datasheet

Datasheet Details

Part number BAR66
Manufacturer Infineon Technologies AG
File Size 417.47 KB
Description Silicon PIN Diode Array
Datasheet download datasheet BAR66 Datasheet

📁 Similar Datasheet

  • BAR66 - Silicon PIN Diode Array (Surge protection device Two PIN diodes/ series configuration) (Siemens Semiconductor Group)
  • BAR60 - Silicon PIN Diodes (RF switch RF attenuator for frequencies above 10 MHz) (Siemens Semiconductor Group)
  • BAR61 - Silicon PIN Diodes (RF switch RF attenuator for frequencies above 10 MHz) (Siemens Semiconductor Group)
  • BAR63 - Silicon PIN Diode (PIN diode for high speed switching of RF signals Low forward resistance Very low capacitance For frequencies up to 3 GHz) (Siemens Semiconductor Group)
  • BAR63-02W - Silicon PIN Diode (PIN diode for high speed switching of RF signals/ Low forward resistance/ small capacitance small inductance) (Siemens Semiconductor Group)
  • BAR63-03 - Silicon PIN Diode (PIN diode for high speed switching of RF signals Low forward resistance Very low capacitance For frequencies up to 3 GHz) (Siemens Semiconductor Group)
  • BAR63-03W - Silicon PIN Diode (PIN diode for high speed switching of RF signals Low forward resistance Very low capacitance For frequencies up to 3 GHz) (Siemens Semiconductor Group)
  • BAR63-04 - Silicon PIN Diode (PIN diode for high speed switching of RF signals Low forward resistance Very low capacitance For frequencies up to 3 GHz) (Siemens Semiconductor Group)
  • BAR63-04W - Silicon PIN Diode (PIN diode for high speed switching of RF signal Low forward resistance Very low capacitance For frequencies up to 3 GHz) (Siemens Semiconductor Group)
  • BAR63-05 - Silicon PIN Diode (PIN diode for high speed switching of RF signals Low forward resistance Very low capacitance For frequencies up to 3 GHz) (Siemens Semiconductor Group)
Other Datasheets by Infineon Technologies AG

Full PDF Text Transcription

Click to expand full text

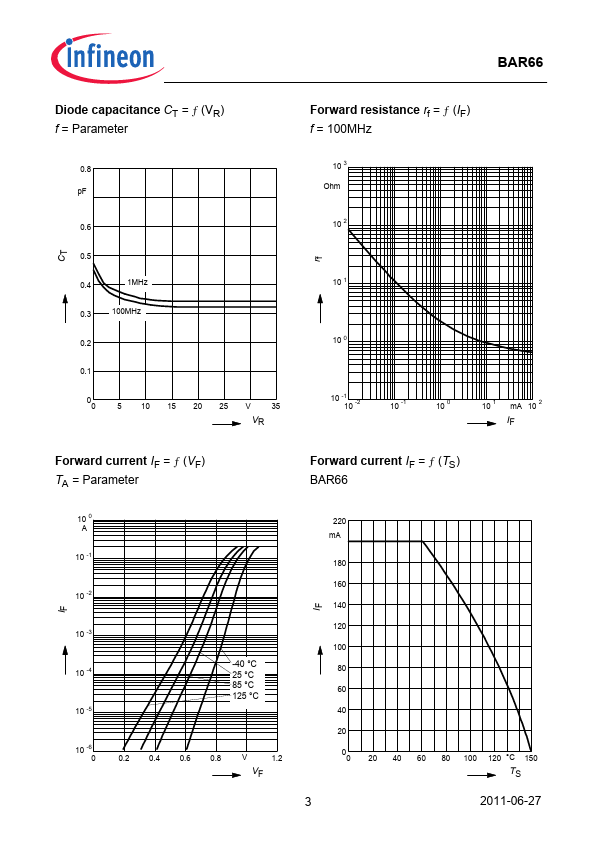

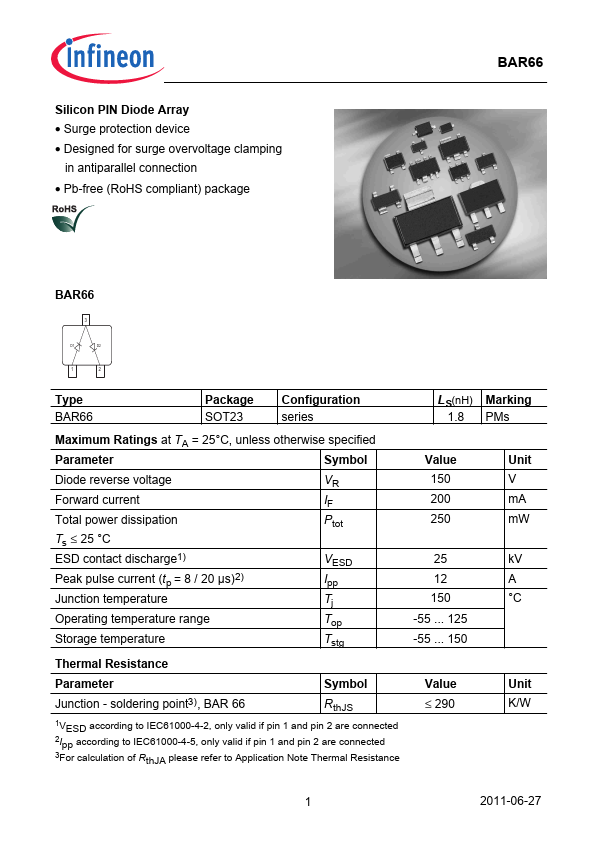

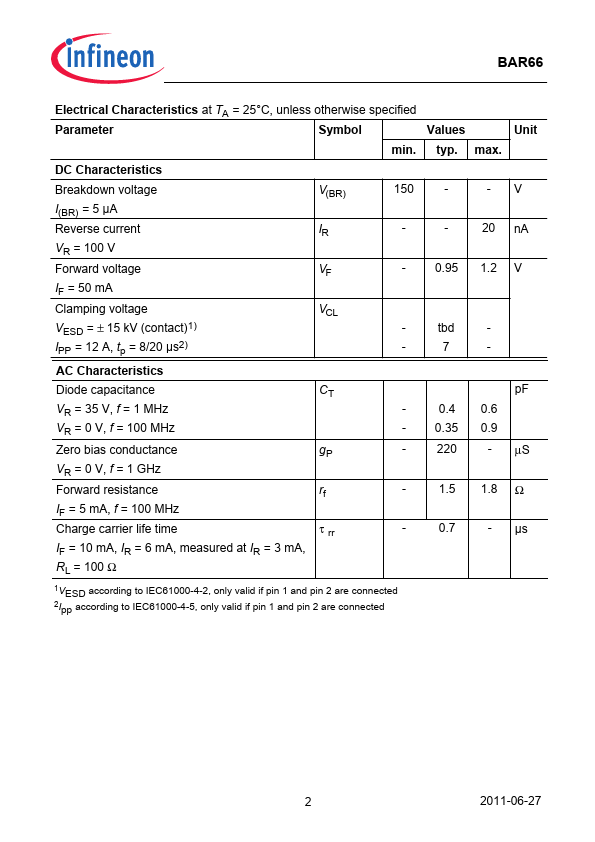

BAR66... Silicon PIN Diode Array • Surge protection device • Designed for surge overvoltage clamping in antiparallel connection BAR66 3 D 1 D 2 1 2 Type BAR66 Package SOT23 Configuration series LS(nH) Marking 1.8 PMs Maximum Ratings at TA = 25°C, unless otherwise specified Parameter Diode reverse voltage Forward current Total power dissipation Ts  25 °C Junction temperature Operating temperature range Storage temperature Thermal Resistance Parameter Junction - soldering point1) , BAR66 1For Symbol VR IF Ptot Tj Top Tstg Symbol RthJS Value 150 200 250 150 -55 ... 125 -55 ... 150 Unit V mA mW °C Value Unit K/W  290 calculation of RthJA please refer to Application Note Thermal Resistance 1 Feb-04-2003 BAR66...
