BAT15-099 - Silicon Schottky Diode

Infineon Technologies AG

Datasheet Details

Part number	BAT15-099
Manufacturer	Infineon Technologies AG
File Size	1.11 MB
Description	Silicon Schottky Diode
Datasheet	BAT15-099 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BAT15-099	Silicon Schottky Diode	Siemens Semiconductor Group
BAT15-099R	Silicon Schottky Diode	Siemens Semiconductor Group
BAT15-090D	Silicon Schottky Diode	Siemens Semiconductor Group
BAT15-090R	Silicon Schottky Diode	Siemens Semiconductor Group
BAT15-090S	Silicon Schottky Diode	Siemens Semiconductor Group

Other Datasheets by Infineon Technologies AG

Part Number	Description
BAT15-099R	silicon RF Schottky diodes
BAT15-02L	Silicon Schottky Diode
BAT15-02V	Silicon Schottky Diode
BAT15-04W	Silicon Schottky Diode
BAT15-05W	Silicon Schottky Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

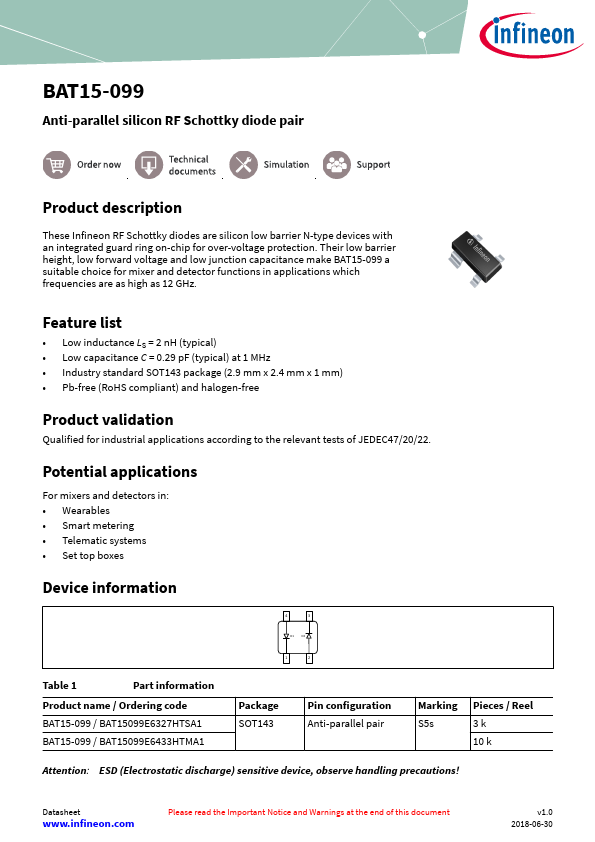

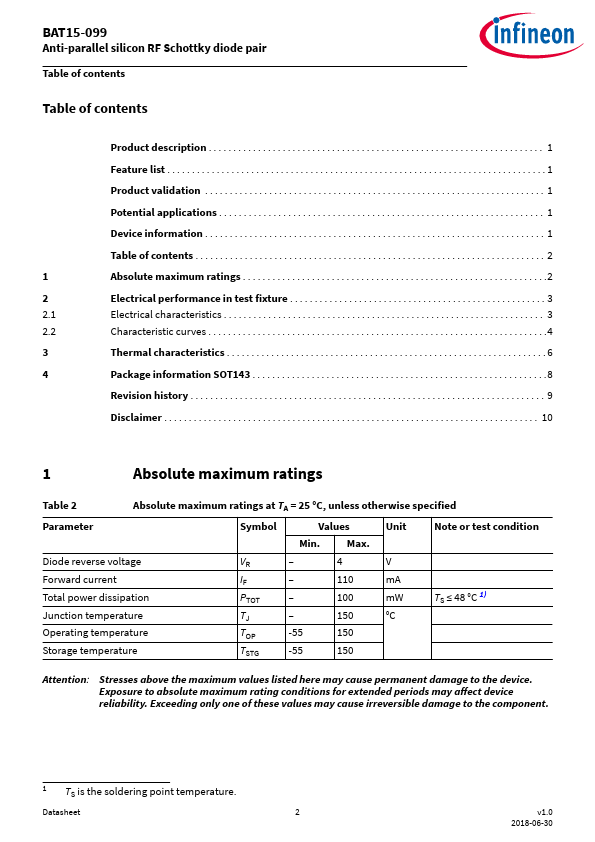

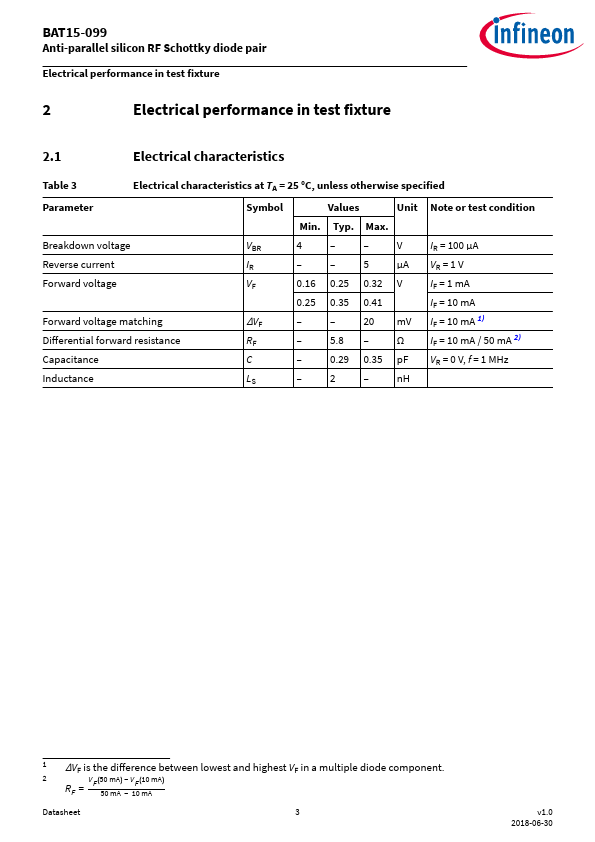

Silicon Schottky Diodes • Low barrier type for DBS mixer applications up to 12 GHz, phase detectors and modulators • Low noise figure • Pb-free (RoHS compliant) package BAT15... BAT15-02EL BAT15-02ELS BAT15-03W BAT15-04W ! , , BAT15-05W ! , , BAT15-099 "! , , BAT15-099R "! , ,! ," , ESD (Electrostatic discharge) sensitive device, observe handling precaution! Type BAT15-02EL BAT15-02ELS BAT15-03W BAT15-04W BAT15-05W BAT15-099 BAT15-099R Package TSLP-2-19 TSSLP-2-3 SOD323 SOT323 SOT323 SOT143 SOT143 Configuration single, leadless single, leadless single series common cathode anti-parallel pair cross-over ring LS(nH) 0.4 0.2 1.8 1.4 1.4 2 2 Marking NN S underline white P S8s S5s S5s S6s 1 2015-01-27 BAT15...
