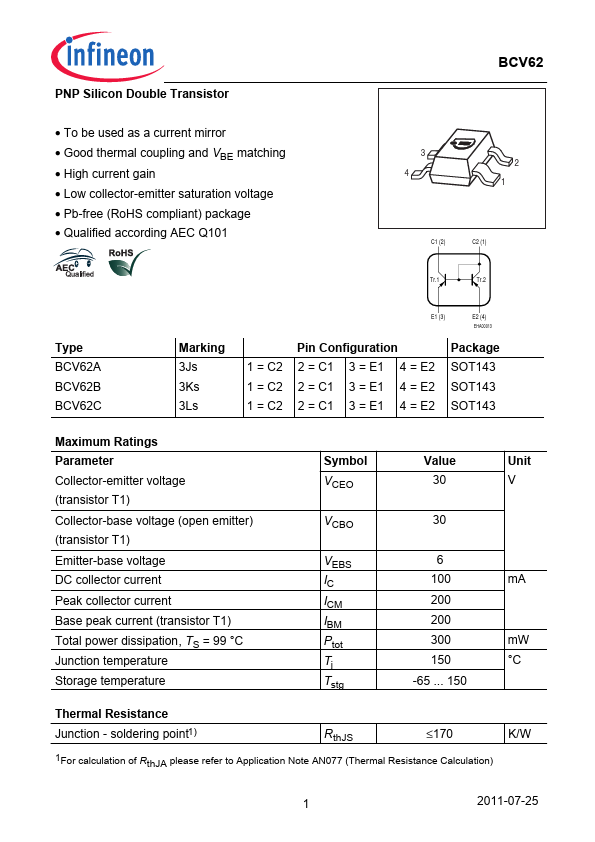

BCV62
BCV62 is PNP Silicon Double Transistor manufactured by Infineon.
PNP Silicon Double Transistor
- To be used as a current mirror
- Good thermal coupling and VBE matching
- High current gain
- Low collector-emitter saturation voltage
- Pb-free (RoHS pliant) package
- Qualified according AEC Q101
3 4
2 1
C1 (2)
C2 (1)
Tr.1
Tr.2
Type BCV62A BCV62B BCV62C
Marking 3Js 3Ks 3Ls
E1 (3)
E2 (4)
EHA00013
1 = C2 1 = C2 1 = C2
Pin Configuration 2 = C1 3 = E1 4 = E2 2 = C1 3 = E1 4 = E2 2 = C1 3 = E1 4 = E2
Package SOT143 SOT143 SOT143
Maximum Ratings Parameter Collector-emitter voltage (transistor T1) Collector-base voltage (open emitter) (transistor T1) Emitter-base voltage DC collector current Peak collector current Base peak current...
