| Part number | BCP51 |
|---|---|
| Datasheet | BCP51-Infineon.pdf |
| File Size | 808.20 KB |
| Manufacturer | Infineon |
| Description | PNP Silicon AF Transistors |
|
|

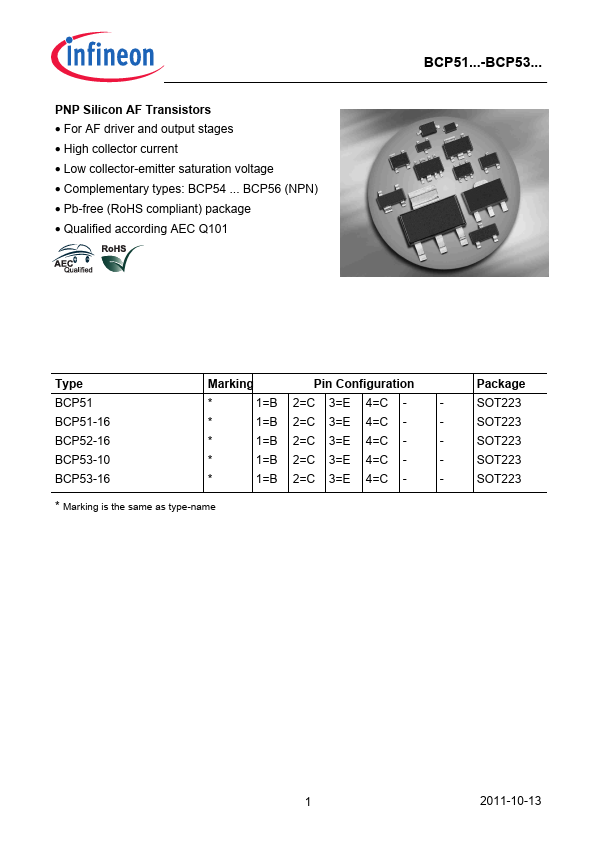

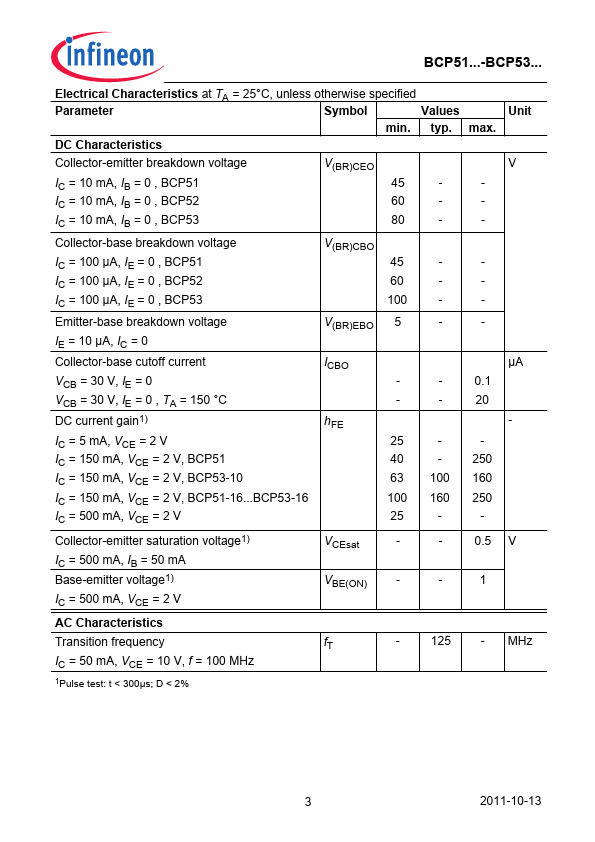

PNP Silicon AF Transistors For AF driver and output stages High collector current Low collector-emitter saturation voltage plementary types: BCP56 (NPN) Pb-free (RoHS pliant) package Qualified according AEC Q101 BCP51...-BCP53... at TA = 25°C, unless otherwise specified Parameter Symbol Values Unit min.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
BCP51 | PNP medium power transistors | NXP |
 |
BCP51 | PNP Transistors | Kexin |
 |
BCP51 | 45V 1A PNP medium power transistors | nexperia |
 |
BCP51 | PNP General Purpose Amplifier | Fairchild Semiconductor |
 |
BCP51 | PNP MEDIUM POWER TRANSISTORS | Diodes |
| Part Number | Description |
|---|---|
| BCP51-16 | PNP Silicon AF Transistors |
| BCP52 | PNP Silicon AF Transistors |
| BCP52-16 | PNP Silicon AF Transistors |
| BCP53 | PNP Silicon AF Transistors |
| BCP53-10 | PNP Silicon AF Transistors |
| BCP53-16 | PNP Silicon AF Transistors |
| BCP54 | NPN Silicon AF Transistors |
| BCP54-16 | NPN Silicon AF Transistors |
| BCP55 | NPN Silicon AF Transistors |
| BCP55-16 | NPN Silicon AF Transistors |
