This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BCP52 |
|---|---|
| Datasheet | BCP52 BCP51 Datasheet (PDF) |
| File Size | 808.20 KB |
| Manufacturer | Infineon |
| Description | PNP Silicon AF Transistors |
|
|

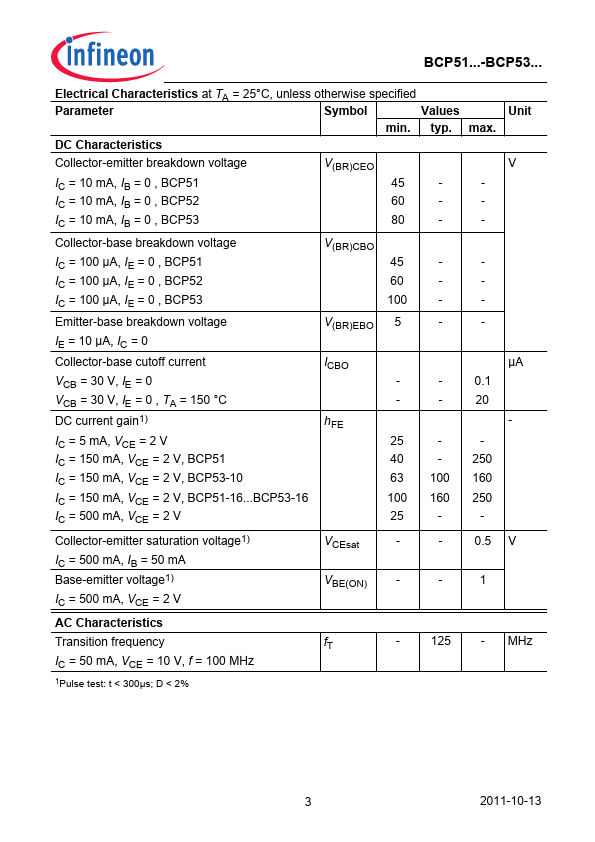

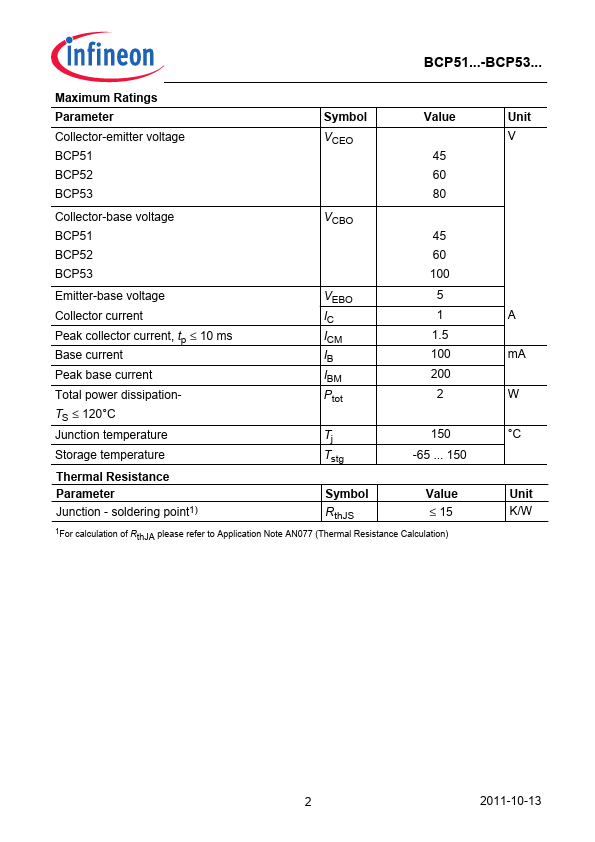

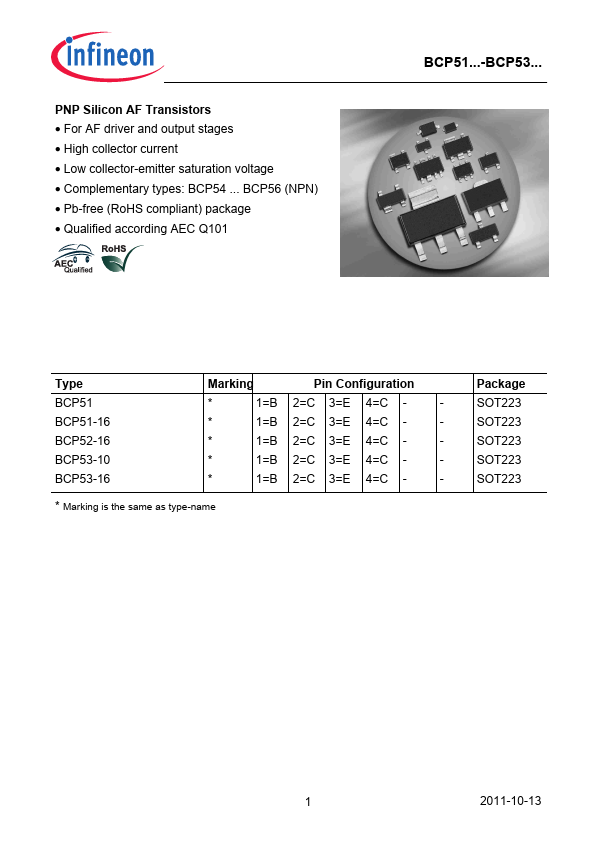

PNP Silicon AF Transistors For AF driver and output stages High collector current Low collector-emitter saturation voltage plementary types: BCP56 (NPN) Pb-free (RoHS pliant) package Qualified according AEC Q101 BCP51...-BCP53... at TA = 25°C, unless otherwise specified Parameter Symbol Values Unit min.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
BCP52 | 1A PNP medium power transistors | nexperia |
 |
BCP52 | MEDIUM POWER AMPLIFIER | STMicroelectronics |
 |
BCP52 | PNP General Purpose Amplifier | Fairchild Semiconductor |
 |
BCP52 | PNP medium power transistors | NXP |
 |
BCP52 | PNP Transistors | Kexin |
| Part Number | Description |
|---|---|
| BCP52-16 | PNP Silicon AF Transistors |
| BCP51 | PNP Silicon AF Transistors |
| BCP51-16 | PNP Silicon AF Transistors |
| BCP53 | PNP Silicon AF Transistors |
| BCP53-10 | PNP Silicon AF Transistors |
| BCP53-16 | PNP Silicon AF Transistors |
| BCP54 | NPN Silicon AF Transistors |
| BCP54-16 | NPN Silicon AF Transistors |
| BCP55 | NPN Silicon AF Transistors |
| BCP55-16 | NPN Silicon AF Transistors |
