BSP62
BSP62 is PNP Silicon Darlington Transistor manufactured by Infineon.
- Part of the BSP60 comparator family.
- Part of the BSP60 comparator family.

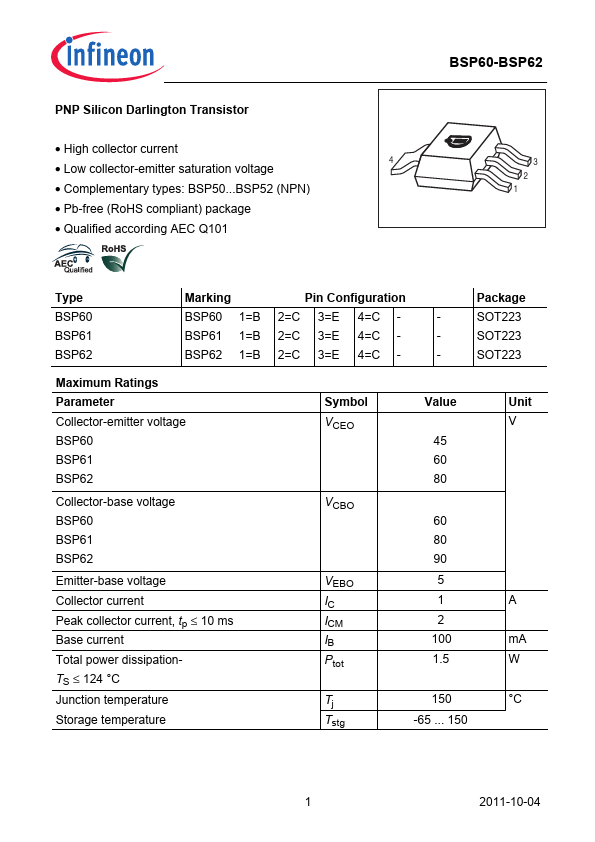

PNP Silicon Darlington Transistor
- High collector current
- Low collector-emitter saturation voltage
- plementary types: BSP50...BSP52 (NPN)
- Pb-free (RoHS pliant) package
- Qualified according AEC Q101
BSP60-BSP62
Type BSP60 BSP61 BSP62
Marking
Pin Configuration
BSP60 1=B 2=C 3=E 4=C
- -
BSP61 1=B 2=C 3=E 4=C
- -
BSP62 1=B 2=C 3=E 4=C
- -
Package SOT223 SOT223 SOT223
Maximum Ratings Parameter Collector-emitter voltage BSP60 BSP61 BSP62
Collector-base voltage BSP60 BSP61 BSP62
Emitter-base voltage Collector current Peak collector current, tp ≤ 10 ms Base current Total power dissipationTS ≤ 124 °C Junction temperature Storage temperature
Symbol...
