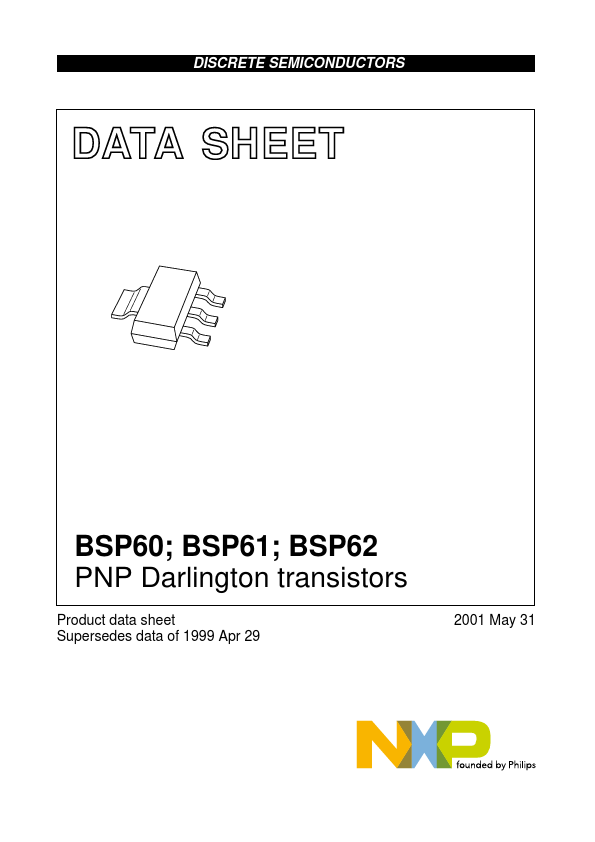

BSP60; BSP61; BSP62 PNP Darlington transistors
Product data sheet Supersedes data of 1999 Apr 29
2001 May 31
NXP Semiconductors
PNP Darlington transistors
Product data sheet
BSP60; BSP61; BSP62

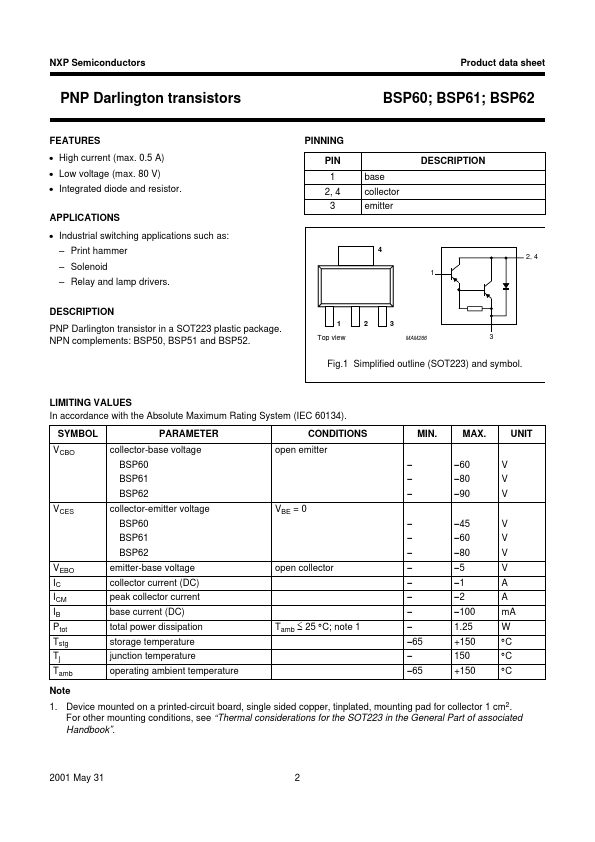

Features
- High current (max. 0.5 A)
- Low voltage (max. 80 V)
- Integrated diode and resistor.
APPLICATIONS
- Industrial switching applications such as:
- Print hammer
- Solenoid
- Relay and lamp drivers.
PINNING
PIN 1
2, 4 3 base collector emitter
DESCRIPTION
4 2, 4
DESCRIPTION
PNP Darlington transistor in a SOT223 plastic package. NPN plements: BSP50, BSP51 and BSP52.
Top view
MAM266

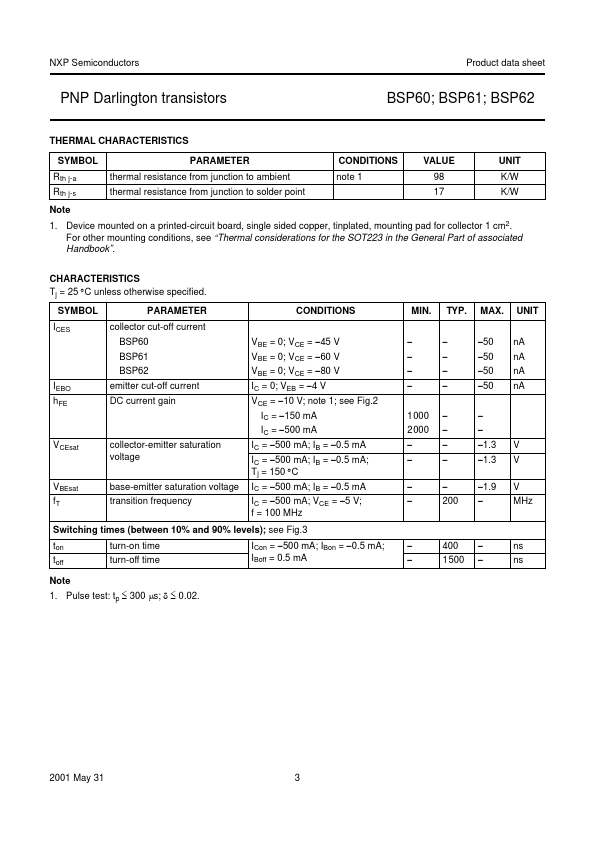

Fig.1 Simplified...
