BSP62 - PNP Darlington transistor

General Description

PNP Darlington transistor in an SOT223 plastic package.

2.

Key Features

  • High current of -1 A.
  • Low voltage of -80 V.
  • Integrated diode and resistor.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

Datasheet Details

Part number BSP62
Manufacturer Nexperia
File Size 193.58 KB
Description PNP Darlington transistor
Datasheet download datasheet BSP62 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BSP62 PNP Darlington transistors NXP
BSP62 PNP Silicon Darlington Transistors Siemens Semiconductor Group
BSP62 PNP Silicon Darlington Transistors Infineon Technologies AG
BSP62T1 MEDIUM POWER PNP SILICON DARLINGTON TRANSISTOR Motorola Inc
BSP60 PNP Darlington transistors NXP

Other Datasheets by Nexperia

Part Number Description
BSP60 PNP Darlington transistor
BSP61 PNP Darlington transistor
BSP50 NPN Darlington transistor
BSP51 NPN Darlington transistor

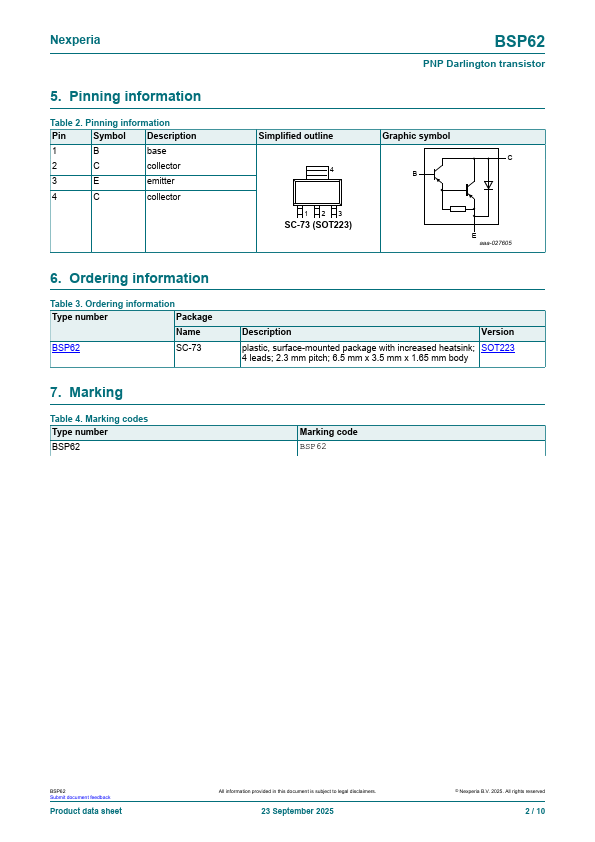

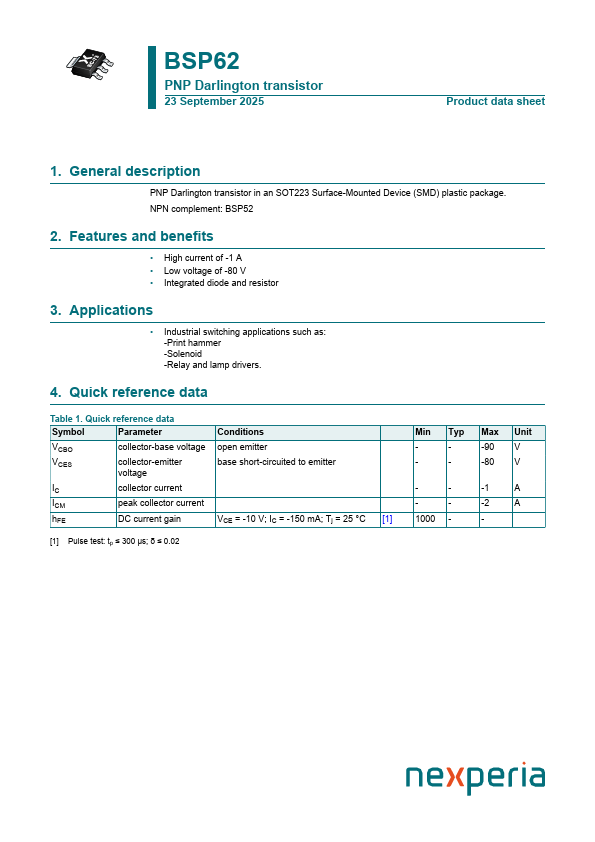

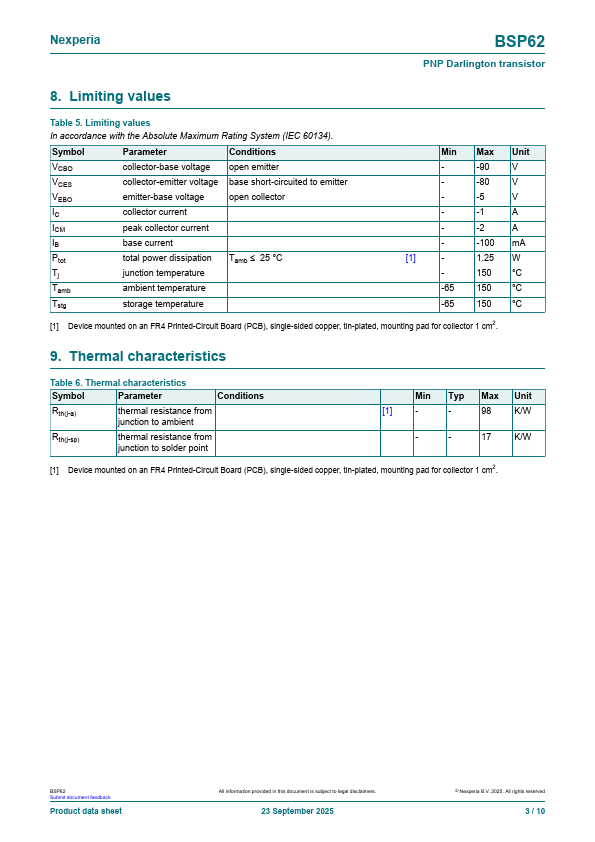

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
BSP62 PNP Darlington transistor 2 May 2018 Product data sheet 1. General description PNP Darlington transistor in an SOT223 plastic package. NPN complement: BSP52 2. Features and benefits • High current of -1 A • Low voltage of -80 V • Integrated diode and resistor • AEC-Q101 qualified 3. Applications • Industrial switching applications such as: - Print hammer - Solenoid - Relay and lamp drivers 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCBO VCES collector-base voltage collector-emitter voltage IC collector current ICM peak collector current hFE DC current gain Conditions open emitter base short-circuited to emitter VCE = -10 V; IC = -150 mA [1] Pulse test: tp ≤ 300 μs; δ ≤ 0.
