IR2110S Datasheet | International Rectifier

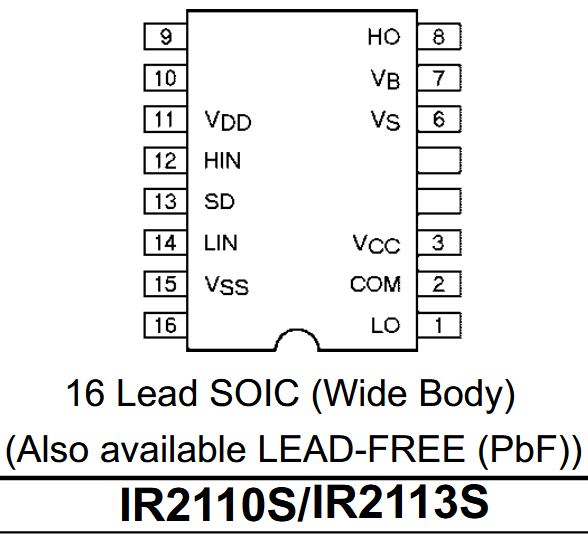

Features - Floating channel designed for bootstrap operation - - - - - - - - Fully operational to +500V or +600V Tolerant to negative transient voltage d V/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout for both channels 3.3V logic patible Separate logic supply range from 3.3V to 20V Logic and power ground ±5V offset CMOS Schmitt-triggered inputs with pull-down Cycle by cycle edge-triggered shutdown logic Matched propagation delay for both channels Outputs in phase with inputs Also available LEAD-FREE Product Summary VOFFSET (IR2110) (IR2113) IO+/VOUT ton/off (typ.) 500V max. 600V max. 2A / 2A 10 - 20V 120 & 94 ns Delay Matching (IR2110) 10 ns max. (IR2113) 20ns max. Packages Description The IR2110/IR2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output chan16-Lead SOIC nels. Proprietary HVIC and latch immune CMOS technologies enable 14-Lead PDIP IR2110S/IR2113S ruggedized monolithic construction. Logic inputs are patible with IR2110/IR2113 (Also available standard CMOS or LSTTL output, down to 3.3V logic. The output LEAD-FREE (Pb F)) drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 500 or 600 volts. Typical Connection HO VDD HIN SD LIN V SS VCC VDD HIN SD LIN VSS VCC LO VB VS up to 500V or 600V TO LOAD (Refer to Lead Assignments for correct pin configuration). This/These diagram(s) show electrical connections only. Please refer to our Application Notes and Design Tips for proper circuit board layout. .irf. IR2110(S)/IR2113(S) & (Pb F) Absolute Maximum Ratings Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are absolute voltages referenced to . The...
