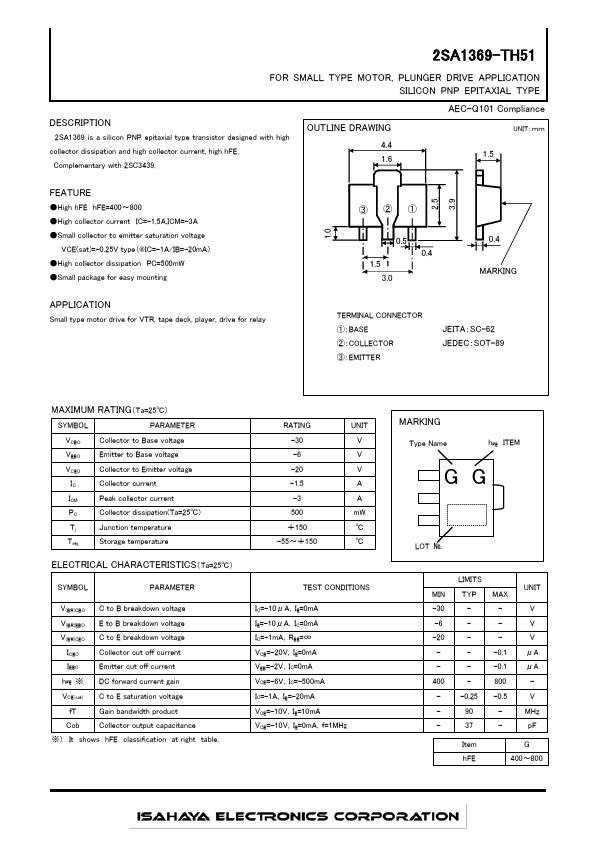

2SA1369 is a silicon PNP epitaxial type transistor designed with high collector dissipation and high collector current, high hFE.
Complementary with 2SC3439.
High hFE hFE=400～800 High collector current IC=-1.5A,ICM=-3A| Part number | 2SA1369-TH51 |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 249.79 KB |
| Description | SILICON PNP EPITAXIAL TYPE TRANSISTOR |
| Datasheet |
 2SA1369-TH51 Datasheet
|
|
|
