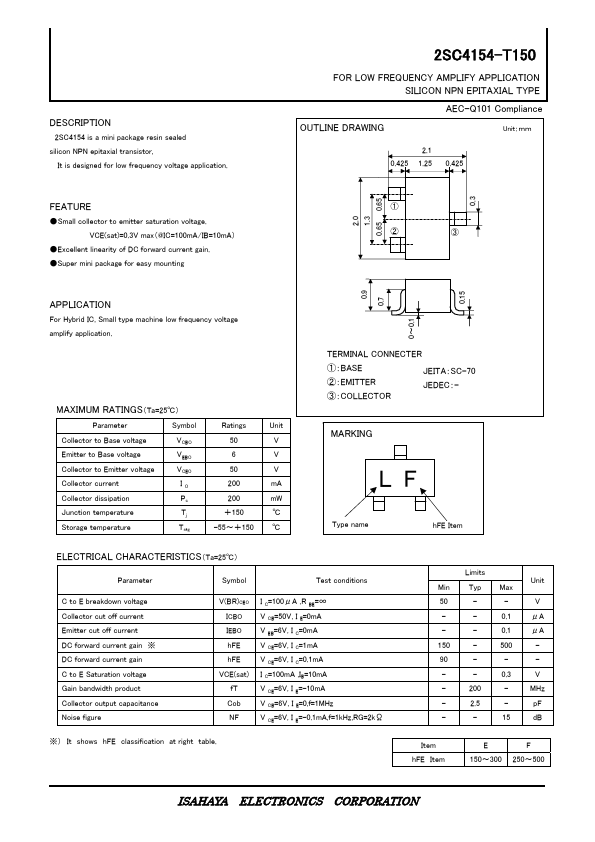

DESCRIPTION
2SC4154 is a mini package resin sealed silicon NPN epitaxial transistor,
It is designed for low frequency voltage application.
2SC4154-T150
FOR LOW FREQUENCY AMPLIFY APPLICATION SILICON NPN EPITAXIAL TYPE
AEC-Q101 Compliance
OUTLINE DRAWING
Unit：ｍｍ
2.1 0.425 1.25 0.425
2.0 1.3 0.65 0.65
0.3
FEATURE
●Small collector to emitter saturation voltage. VCE(sat)=0.3V max（@IC=100mA/IB=10mA）
●Excellent linearity of DC forward current gain. ●Super mini package for easy mounting
①
②
③
0.9 0.7 0～0.1 0.15
APPLICATION
For Hybrid IC, Small type machine low frequency voltage amplify application.
