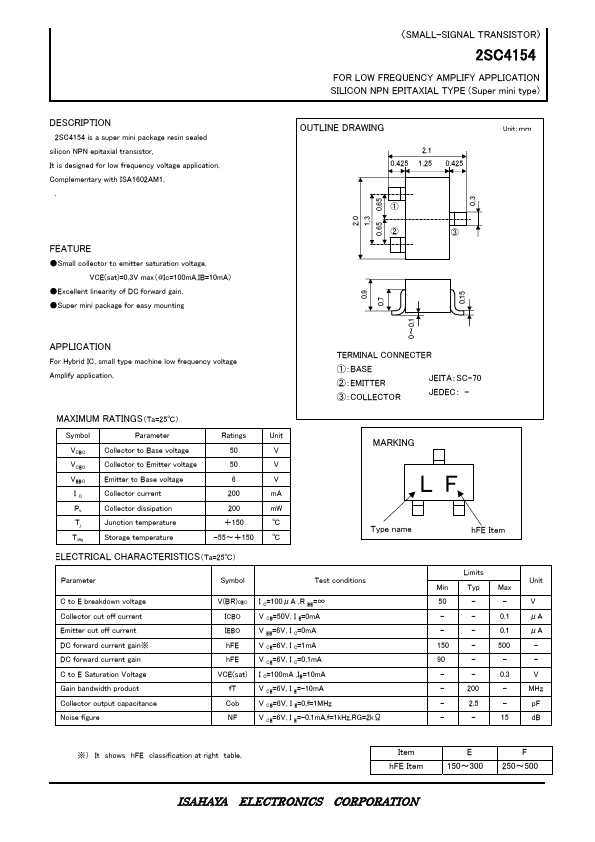

2SC4154
2SC4154 is Silicon NPN Epitaxial Type Transistor manufactured by Isahaya Electronics Corporation.
DESCRIPTION
2SC4154 is a super mini package resin sealed silicon NPN epitaxial transistor, It is designed for low frequency voltage application. plementary with ISA1602AM1.
.
FEATURE
- Small collector to emitter saturation voltage. VCE(sat)=0.3V max（@Ic=100mA,IB=10mA）
- Excellent linearity of DC forward gain.
- Super mini package for easy mounting
2.0 1.3 0.65 0.65
〈SMALL-SIGNAL TRANSISTOR〉
FOR LOW FREQUENCY AMPLIFY APPLICATION SILICON NPN EPITAXIAL TYPE (Super mini type)
OUTLINE DRAWING
2.1 0.425 1.25 0.425
Unit：ｍｍ
①
②
③
0.9 0.7 0～0.1 0.15
APPLICATION
For Hybrid IC, small type machine low frequency voltage Amplify application.
TERMINAL CONNECTER
①：BASE ②：EMITTER...
