2SC4155A-T150
2SC4155A-T150 is SILICON NPN EPITAXIAL TYPE TRANSISTOR manufactured by Isahaya Electronics Corporation.
DESCRIPTION
2SC4155A is a mini package resin sealed silicon NPN epitaxial transistor.
It is designed for low frequency voltage application.
FOR LOW FREQUENCY AMPLIFY APPLICATION SILICON NPN EPITAXIAL TYPE
AEC-Q101 pliance

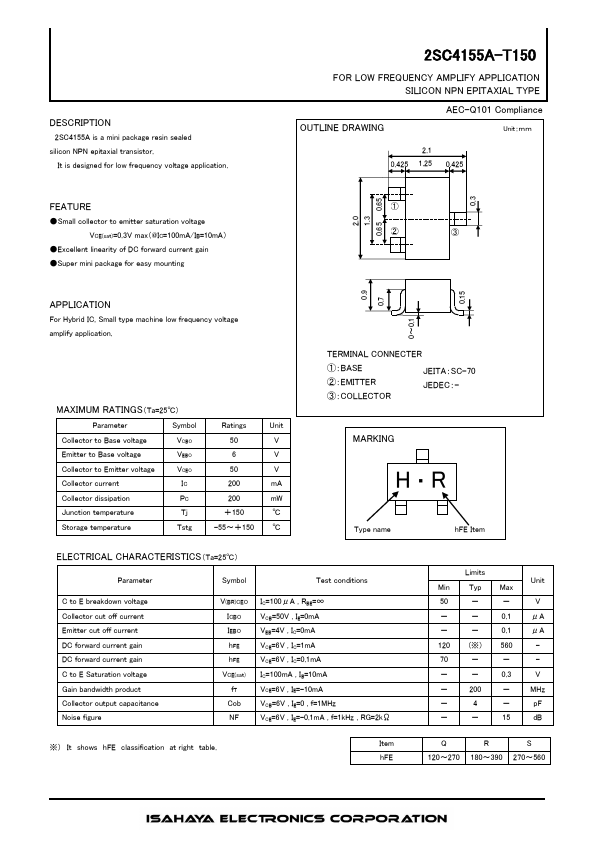

OUTLINE DRAWING
Unit：ｍｍ
2.1 0.425 1.25 0.425
2.0 1.3 0.65 0.65
FEATURE
- Small collector to emitter saturation voltage VCE(sat)=0.3V max（@IC=100m A/IB=10m A）
- Excellent linearity of DC forward current gain
- Super mini package for easy mounting
①
②
③
0.9 0.7 0～0.1 0.15
APPLICATION
For Hybrid IC, Small type machine low frequency voltage amplify application.
MAXIMUM RATINGS（Ta=25℃）
Parameter
Symbol
Collector to Base voltage
VCBO
Emitter to Base voltage
VEBO
Collector to Emitter voltage
VCEO
Collector current
Collector dissipation
Junction temperature
Tj
Storage temperature
Tstg
Ratings
Unit...
