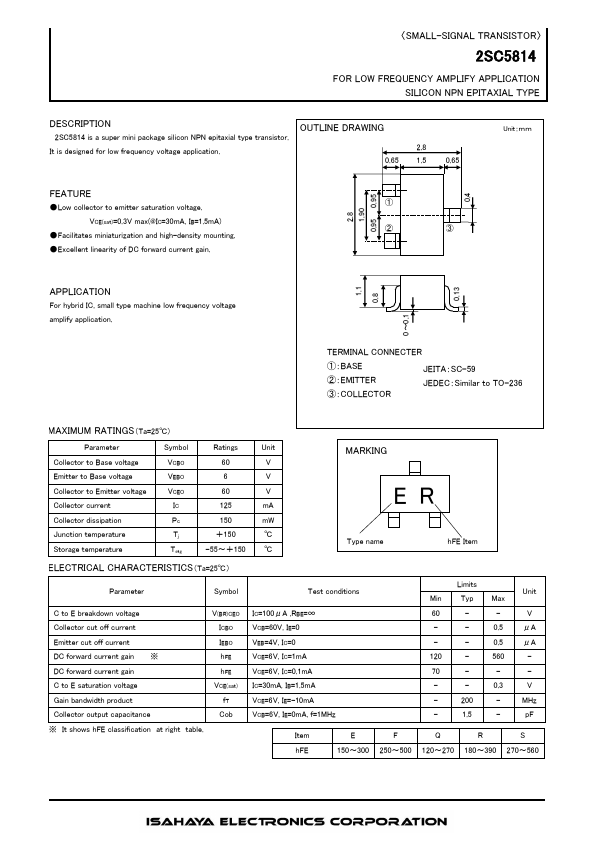

2SC5814
2SC5814 is SILICON NPN EPITAXIAL TYPE TRANSISTOR manufactured by Isahaya Electronics Corporation.
DESCRIPTION
OUTLINE DRAWING
2SC5814 is a super mini package silicon NPN epitaxial type transistor.
It is designed for low frequency voltage application.
0.65 1.5 0.65
Unit：ｍｍ
2.8 1.90 0.95 0.95
FEATURE
- Low collector to emitter saturation voltage. VCE(sat)=0.3V max(@IC=30m A, IB=1.5m A)
- Facilitates miniaturization and high-density mounting.
- Excellent linearity of DC forward current gain.
①
②
③
1.1 0.8 0～0.1 0.13
APPLICATION
For hybrid IC, small type machine low frequency voltage amplify application.
TERMINAL CONNECTER
①：BASE ②：EMITTER ③：COLLECTOR
JEITA：SC-59 JEDEC：Similar to TO-236
MAXIMUM RATINGS（Ta=25℃）
Parameter Collector to Base voltage Emitter to Base voltage Collector to Emitter voltage Collector current Collector dissipation Junction temperature Storage temperature
Symbol VCBO VEBO VCEO
IC Pc Tj Tstg
Ratings
Unit
125 m A
150 m W
＋150
℃
-55～＋150 ℃
MARKING
Type name h FE Item
ELECTRICAL CHARACTERISTICS（Ta=25℃）
Parameter
Symbol...
