Datasheet Details
| Part number | RT1P150C |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 479.31 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P150C Download (PDF) |
|
|

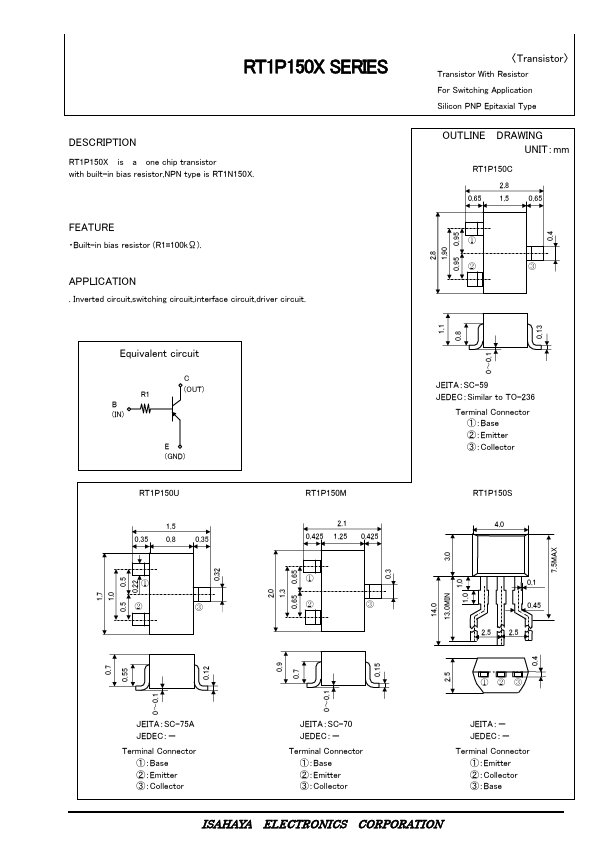

Overview: RT1P150X SERIES.
| Part number | RT1P150C |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 479.31 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P150C Download (PDF) |
|
|
|
RT1P150X is a one chip transistor with built-in bias resistor,NPN type is RT1N150X.
| Part Number | Description |
|---|---|
| RT1P150M | Silicon PNP Epitaxial Type Transistor |
| RT1P150S | Silicon PNP Epitaxial Type Transistor |
| RT1P150U | Silicon PNP Epitaxial Type Transistor |
| RT1P151C | Silicon PNP Epitaxial Type Transistor |
| RT1P151M | Silicon PNP Epitaxial Type Transistor |
| RT1P151S | Silicon PNP Epitaxial Type Transistor |
| RT1P151U | Silicon PNP Epitaxial Type Transistor |
| RT1P15BC | Silicon PNP Epitaxial Type Transistor |
| RT1P15BM | Silicon PNP Epitaxial Type Transistor |
| RT1P15BS | Silicon PNP Epitaxial Type Transistor |
