Datasheet Details
| Part number | RT1P151M |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 478.38 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P151M Download (PDF) |
|
|
Overview: RT1P151X SERIES.
Download the RT1P151M datasheet PDF. This datasheet also includes the RT1P151C variant, as both parts are published together in a single manufacturer document.
| Part number | RT1P151M |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 478.38 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P151M Download (PDF) |
|
|
|

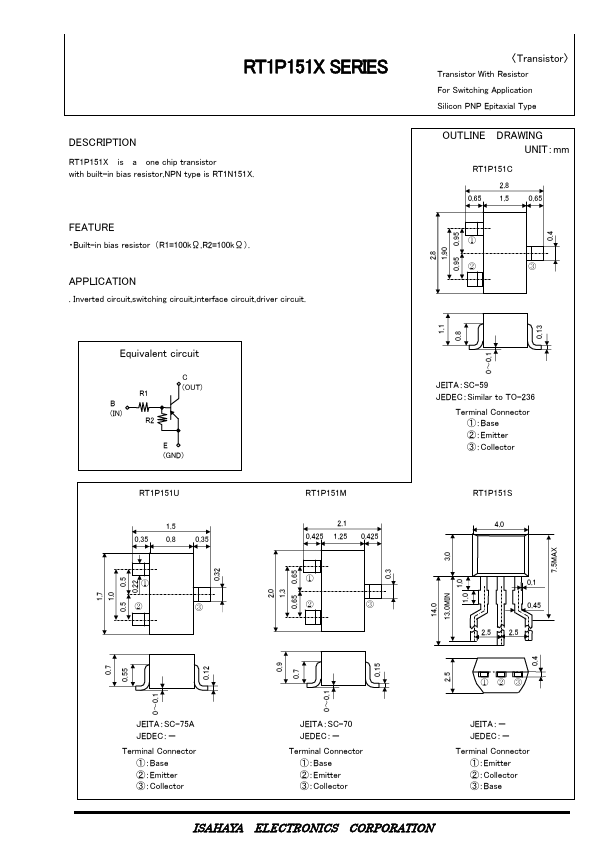

RT1P151X is a one chip transistor with built-in bias resistor,NPN type is RT1N151X.
| Part Number | Description |
|---|---|
| RT1P151C | Silicon PNP Epitaxial Type Transistor |
| RT1P151S | Silicon PNP Epitaxial Type Transistor |
| RT1P151U | Silicon PNP Epitaxial Type Transistor |
| RT1P150C | Silicon PNP Epitaxial Type Transistor |
| RT1P150M | Silicon PNP Epitaxial Type Transistor |
| RT1P150S | Silicon PNP Epitaxial Type Transistor |
| RT1P150U | Silicon PNP Epitaxial Type Transistor |
| RT1P15BC | Silicon PNP Epitaxial Type Transistor |
| RT1P15BM | Silicon PNP Epitaxial Type Transistor |
| RT1P15BS | Silicon PNP Epitaxial Type Transistor |
