RT1P151C
RT1P151C is Silicon PNP Epitaxial Type Transistor manufactured by Isahaya Electronics Corporation.

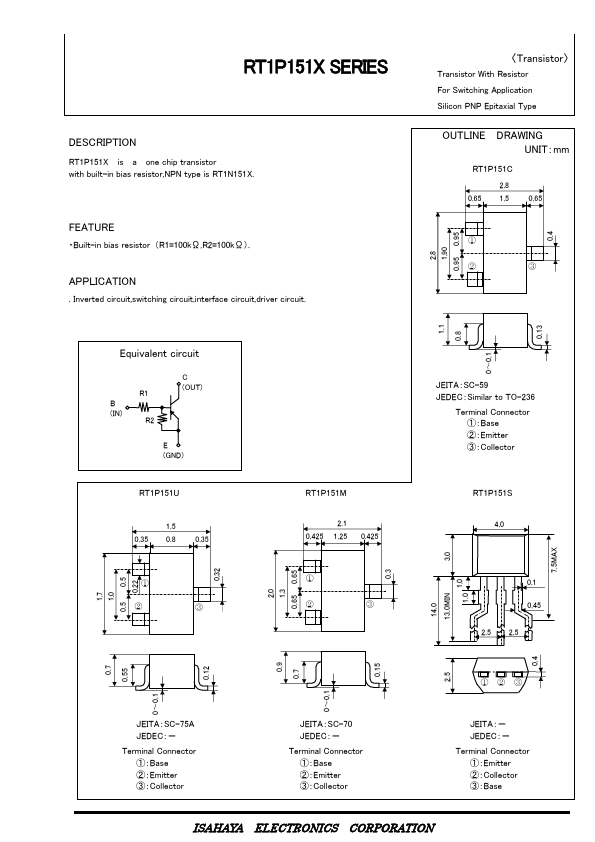

DESCRIPTION
RT1P151X is a one chip transistor with built-in bias resistor,NPN type is RT1N151X.
FEATURE
- Built-in bias resistor （R1=100kΩ,R2=100kΩ）.
APPLICATION
. Inverted circuit,switching circuit,interface circuit,driver circuit.
2.8 1.90 0.95 0.95
〈Transistor〉
Transistor With Resistor For Switching Application Silicon PNP Epitaxial Type
OUTLINE DRAWING UNIT：mm
2.8 0.65 1.5 0.65
①
②
③
1.1 0.8 0～0.1 0.13
0.4 7.5MAX
1.7 1.0 0.5 0.5
0.22 0.32
Equivalent circuit
R1 B (IN)
R2
C (OUT)
E (GND)
RT1P151U
1.5 0.35 0.8 0.35
①
②
③
2.0 1.3 0.65 0.65
RT1P151M
2.1 0.425 1.25 0.425
①
②
③
13.0MIN
1.0...
