This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | RT1P440M |
|---|---|
| Datasheet | RT1P440M RT1P440C Datasheet (PDF) |
| File Size | 477.69 KB |
| Manufacturer | Isahaya Electronics Corporation |
| Description | Silicon PNP Epitaxial Type Transistor |
|
|

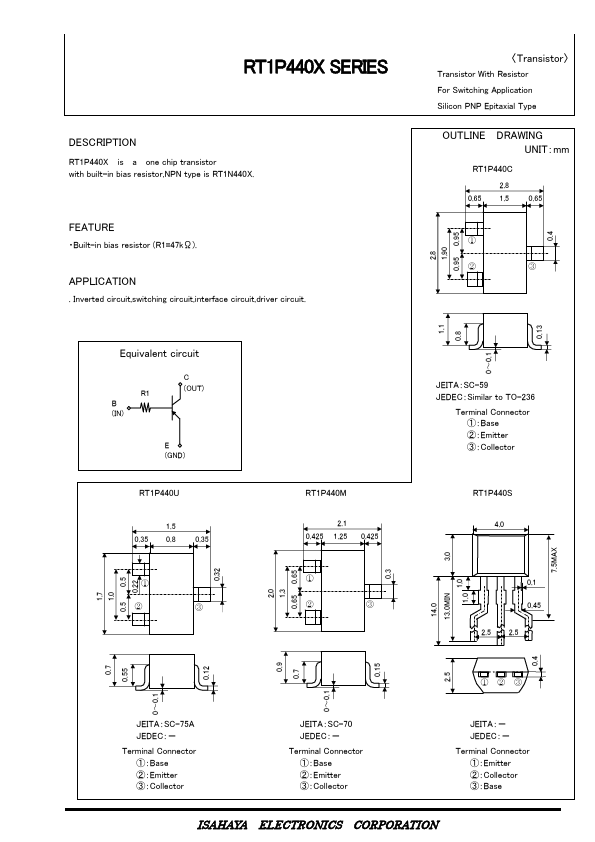

RT1P440X is a one chip transistor with built-in bias resistor,NPN type is RT1N440X.
See all Isahaya Electronics Corporation datasheets
| Part Number | Description |
|---|---|
| RT1P440C | Silicon PNP Epitaxial Type Transistor |
| RT1P440S | Silicon PNP Epitaxial Type Transistor |
| RT1P440U | Silicon PNP Epitaxial Type Transistor |
| RT1P441M | Silicon PNP Epitaxial Type Transistor |
| RT1P441S | Silicon PNP Epitaxial Type Transistor |
| RT1P441U | Silicon PNP Epitaxial Type Transistor |
| RT1P44BC | Silicon PNP Epitaxial Type Transistor |
| RT1P44BM | Silicon PNP Epitaxial Type Transistor |
| RT1P44BS | Silicon PNP Epitaxial Type Transistor |
| RT1P44BU | Silicon PNP Epitaxial Type Transistor |
