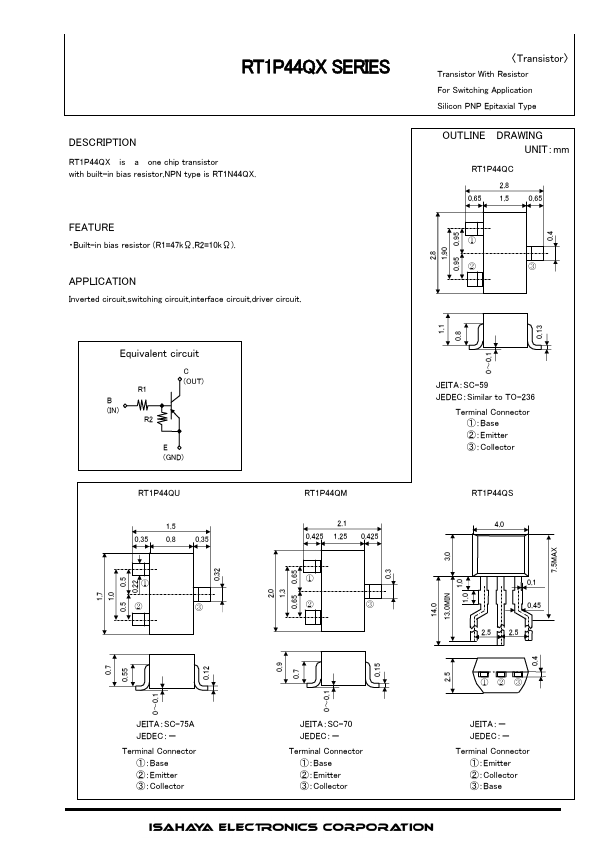

RT1P44QC
DESCRIPTION
RT1P44QX is a one chip transistor with built-in bias resistor,NPN type is RT1N44QX.
FEATURE
- Built-in bias resistor (R1=47kΩ,R2=10kΩ).
APPLICATION
Inverted circuit,switching circuit,interface circuit,driver circuit.
2.8 1.90 0.95 0.95
〈Transistor〉
Transistor With Resistor For Switching Application Silicon PNP Epitaxial Type
OUTLINE DRAWING UNIT：mm
2.8 0.65 1.5 0.65
①
②
③
1.1 0.8 0～0.1 0.13
0.4 7.5MAX
1.7 1.0 0.5 0.5
0.22 0.32
Equivalent circuit
R1
B (IN)
R2
C (OUT)
E (GND)
RT1P44QU
1.5 0.35 0.8 0.35
①
②
③
JEITA：SC-75A JEDEC：－
Terminal Connector ①：Base ②：Emitter ③：Collector
0.9 0.7 0～0.1
2.0 1.3 0.65 0.65
RT1P44QM
2.1 0.425 1.25 0.425
①
②
③
JEITA：SC-70...
