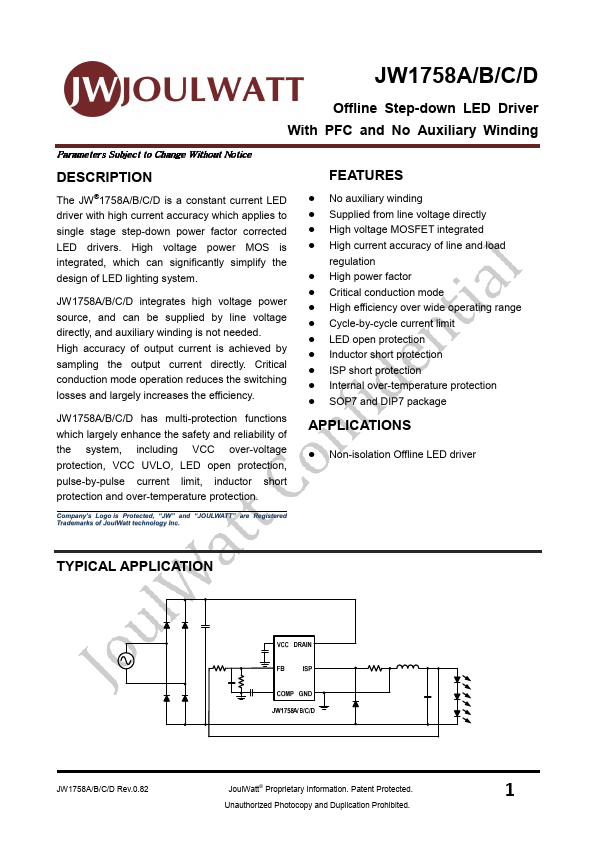

JW1758A Datasheet Offline Step-down Led Driver

Manufacturer: JoulWatt

Overview: JW1758A/B/C/D Offline Step-down LED Driver With PFC and No Auxiliary Winding Parameters Subject to Change Without.

Datasheet Details

Part number JW1758A
Manufacturer JoulWatt
File Size 965.41 KB
Description Offline Step-down LED Driver
Datasheet JW1758A-JoulWatt.pdf

Key Features

  • The JW®1758A/B/C/D is a constant current LED driver with high current accuracy which applies to single stage step-down power factor corrected LED drivers. High voltage power MOS is integrated, which can significantly simplify the design of LED lighting system. JW1758A/B/C/D integrates high voltage power source, and can be supplied by line voltage directly, and auxiliary winding is not needed. High accuracy of output current is achieved by sampling the output current directly. Critical conductio.
