JW1758C datasheet by JoulWatt.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | JW1758C |
|---|---|
| Datasheet | JW1758C JW1758A Datasheet (PDF) |
| File Size | 965.41 KB |
| Manufacturer | JoulWatt |
| Description | Offline Step-down LED Driver |
|
|

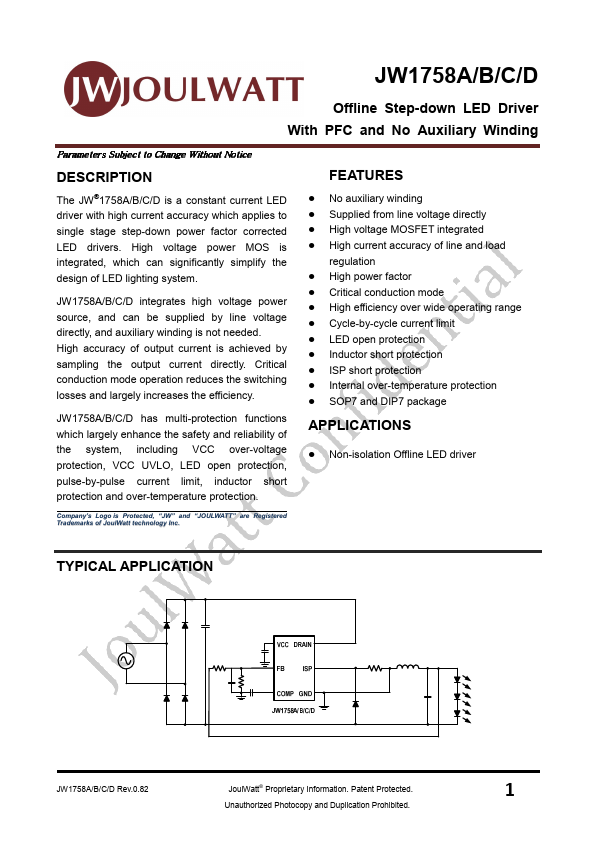

FEATURES The JW®1758A/B/C/D is a constant current LED driver with high current accuracy which applies to single stage step-down power factor corrected LED drivers. High voltage power MOS is integrated, which can significantly simplify the design of LED lighting system. JW1758A/B/C/D integrates high voltage power source, and can be supplied by line voltage directly, and auxiliary winding is not needed.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
| SPMICRO | JW1758C | Offline Step-down LED Controller | SPMICRO |
| SPMICRO | JW1758A | Offline Step-down LED Controller | SPMICRO |
| SPMICRO | JW1758B | Offline Step-down LED Controller | SPMICRO |
