JW5117 - 45V/5A Asynchronous Step-Down Converter

General Description

The JW®5117 is a current mode monolithic buck switching regulator.

Operating with an input range of 4.8V~45V, the JW5117 delivers 5A of continuous output current with an integrated high side N-Channel MOSFET.

Key Features

  • 4.8V to 45V operating input range 5A output current.
  • 0.8V±1% internal voltage reference.
  • Adjustable soft-start.
  • Adjustable switching frequency.
  • UV and OV power good indicator.
  • Adjustable UVLO and hysteresis.
  • Current run-away protection.
  • Short circuit protection.
  • Output over-voltage protection.
  • Thermal protection.
  • Available in DFN4x4-10 package.

📥 Download Datasheet

Datasheet Details

Part number JW5117
Manufacturer JoulWatt
File Size 1.15 MB
Description 45V/5A Asynchronous Step-Down Converter
Datasheet download datasheet JW5117 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
JW5026 16 Constant Current LED Driver RISETEK

Other Datasheets by JoulWatt

Part Number Description
JW5117C 45V/5A Asynchronous Step-Down Converter
JW5116F 40V Asynchronous Step-Down Converter
JW5121 60V/2A Asynchronous Step-Down Converter
JW5143 Step-Down Converter
JW5143P Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

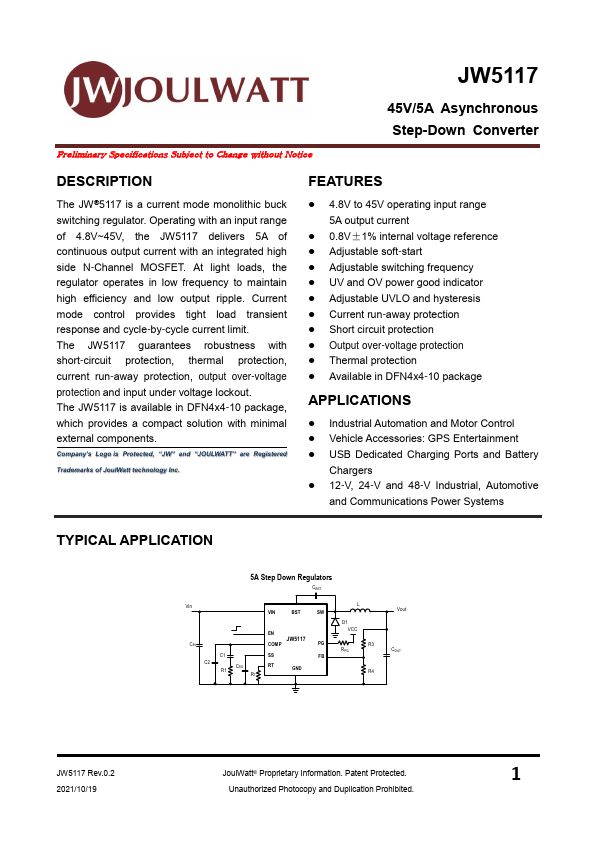

JW5117 Preliminary Specifications Subject to Change without Notice 45V/5A Asynchronous Step-Down Converter DESCRIPTION The JW®5117 is a current mode monolithic buck switching regulator. Operating with an input range of 4.8V~45V, the JW5117 delivers 5A of continuous output current with an integrated high side N-Channel MOSFET. At light loads, the regulator operates in low frequency to maintain high efficiency and low output ripple. Current mode control provides tight load transient response and cycle-by-cycle current limit. The JW5117 guarantees robustness with short-circuit protection, thermal protection, current run-away protection, output over-voltage protection and input under voltage lockout.
