JW5117C - 45V/5A Asynchronous Step-Down Converter

Datasheet Summary

Description

The JW®5117C is a current mode monolithic buck switching regulator.

Operating with an input range of 4.5V~45V, the JW5117C delivers 5A of continuous output current with an integrated high side N-Channel MOSFET.

At light loads, the regulator operates in low frequency to maintain high efficiency.

Features

  • 4.5V to 45V operating input range 5A output current.
  • 0.8V±1% internal voltage reference.
  • Adjustable switching frequency.
  • Adjustable UVLO and hysteresis.
  • Current run-away protection.
  • Short circuit protection.
  • Thermal protection.
  • Available in ESOP8 package.

📥 Download Datasheet

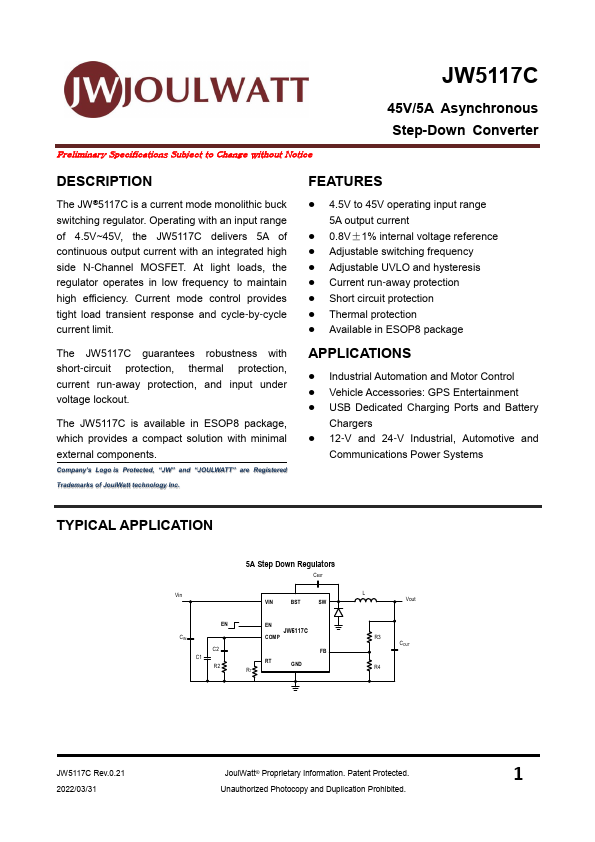

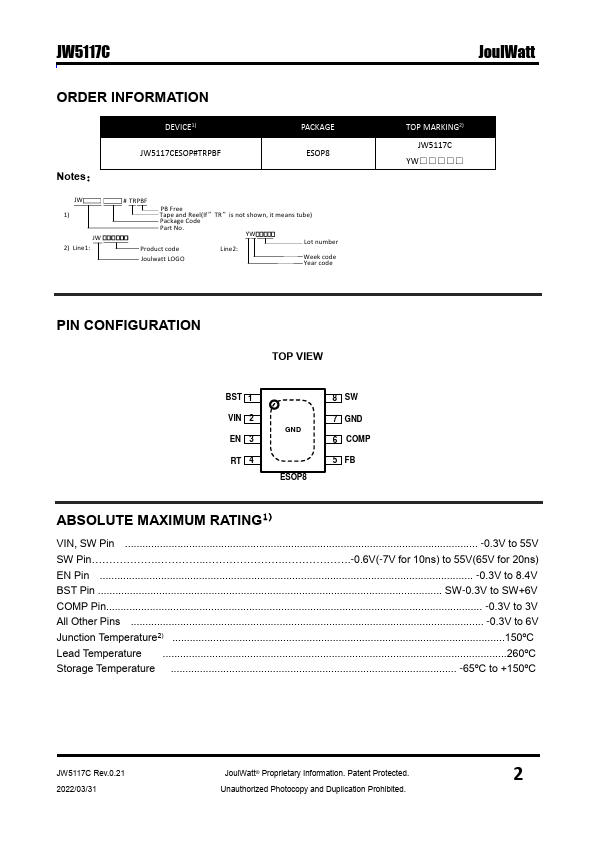

Datasheet preview – JW5117C

Datasheet Details

Part number JW5117C
Manufacturer JoulWatt
File Size 1.22 MB
Description 45V/5A Asynchronous Step-Down Converter
Datasheet download datasheet JW5117C Datasheet

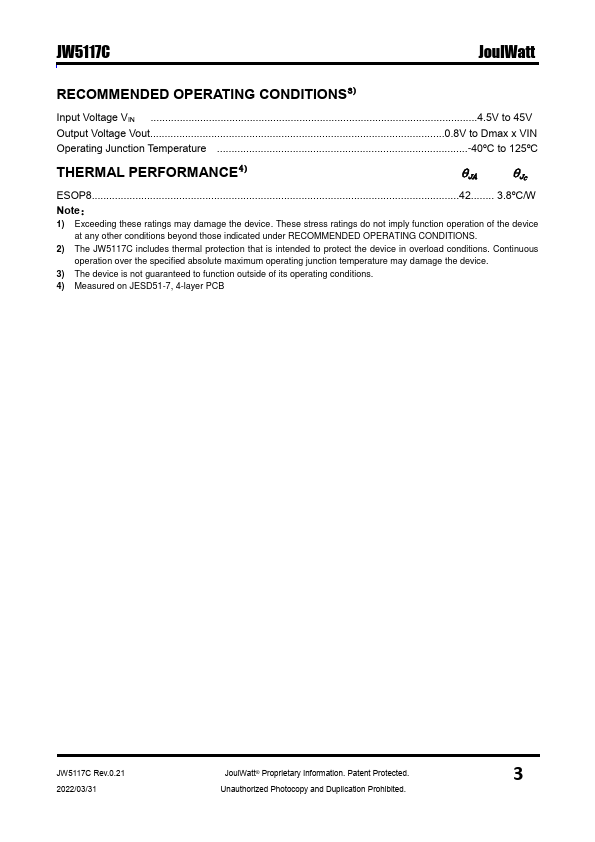

Additional preview pages of the JW5117C datasheet.

📁 Similar Datasheet

  • JW5026 - 16 Constant Current LED Driver (RISETEK)
Other Datasheets by JoulWatt
  • JW5117 - 45V/5A Asynchronous Step-Down Converter
  • JW5116F - 40V Asynchronous Step-Down Converter
  • JW5121 - 60V/2A Asynchronous Step-Down Converter
  • JW5143 - Step-Down Converter
  • JW5143P - Step-Down Converter
  • JW5015 - 40V Synchronous Rectified Step-Down Converter
  • JW5015A - 2A 40V Synchronous Step-Down Converter
  • JW5015B - 40V Synchronous Step-Down Converter

Full PDF Text Transcription

Click to expand full text
JW5117C Preliminary Specifications Subject to Change without Notice 45V/5A Asynchronous Step-Down Converter DESCRIPTION The JW®5117C is a current mode monolithic buck switching regulator. Operating with an input range of 4.5V~45V, the JW5117C delivers 5A of continuous output current with an integrated high side N-Channel MOSFET. At light loads, the regulator operates in low frequency to maintain high efficiency. Current mode control provides tight load transient response and cycle-by-cycle current limit. The JW5117C guarantees robustness with short-circuit protection, thermal protection, current run-away protection, and input under voltage lockout. The JW5117C is available in ESOP8 package, which provides a compact solution with minimal external components.
