JW5372 - 18V/4A Sync. Step-Down Converter

General Description

The JW®5372 and JW®5372F are monolithic buck switching regulators based on I2 architecture for fast transient response.

Operating with an input range of 4.5V~18V, JW5372 and JW5372F deliver 4A of continuous output current with two integrated N-Channel MOSFETs.

Key Features

  • 4.5V to 18V operating input range 4A output current.
  • Up to 96% efficiency.
  • PFM mode (JW5372) at light load.
  • FCC mode (JW5372F) at light load.
  • 600kHz switching frequency.
  • Internal soft-start.
  • Input under voltage lockout.
  • Current run-away protection.
  • Output short protection.
  • Thermal protection.
  • Available in TSOT23-6 package.

📥 Download Datasheet

Datasheet Details

Part number JW5372
Manufacturer JoulWatt
File Size 1.67 MB
Description 18V/4A Sync. Step-Down Converter
Datasheet download datasheet JW5372 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
JW5026 16 Constant Current LED Driver RISETEK

Other Datasheets by JoulWatt

Part Number Description
JW5372F 18V/4A Sync. Step-Down Converter
JW5305 18V/5A Sync. Step-Down Converter
JW5305F 18V/5A Sync. Step-Down Converter
JW5357 18V/3A Sync. Step-Down Converter
JW5357M 18V/3A Sync. Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

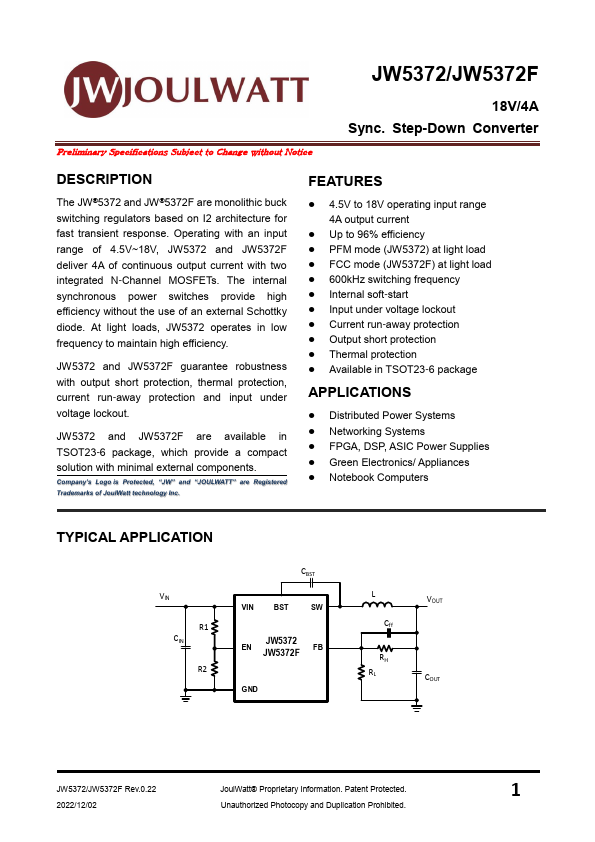

JW5372/JW5372F Preliminary Specifications Subject to Change without Notice 18V/4A Sync. Step-Down Converter DESCRIPTION The JW®5372 and JW®5372F are monolithic buck switching regulators based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5372 and JW5372F deliver 4A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, JW5372 operates in low frequency to maintain high efficiency. JW5372 and JW5372F guarantee robustness with output short protection, thermal protection, current run-away protection and input under voltage lockout.
