JW5357M - 18V/3A Sync. Step-Down Converter

Download the JW5357M datasheet PDF. This datasheet also covers the JW5357 variant, as both devices belong to the same 18v/3a sync. step-down converter family and are provided as variant models within a single manufacturer datasheet.

General Description

The JW®5357 and JW®5357M are monolithic buck switching regulator based on I2 architecture for fast transient response.

Operating with an input range of 4.5V~18V, JW5357 and JW5357M deliver 3A of continuous output current with two integrated N-Channel MOSFETs.

Key Features

  • 4.5V to 18V operating input range 3A output current.
  • Up to 95% efficiency.
  • PFM at light load.
  • 600kHz switching frequency.
  • Internal soft-start.
  • Input under-voltage lockout.
  • Current run-away protection.
  • Output short protection.
  • Thermal protection.
  • Available in SOT23-6 package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (JW5357-JoulWatt.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number JW5357M
Manufacturer JoulWatt
File Size 1.17 MB
Description 18V/3A Sync. Step-Down Converter
Datasheet download datasheet JW5357M Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
JW5026 16 Constant Current LED Driver RISETEK

Other Datasheets by JoulWatt

Part Number Description
JW5357 18V/3A Sync. Step-Down Converter
JW5359 18V/2A Sync. Step-Down Converter
JW5359F 18V/2A Sync. Step-Down Converter
JW5305 18V/5A Sync. Step-Down Converter
JW5305F 18V/5A Sync. Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

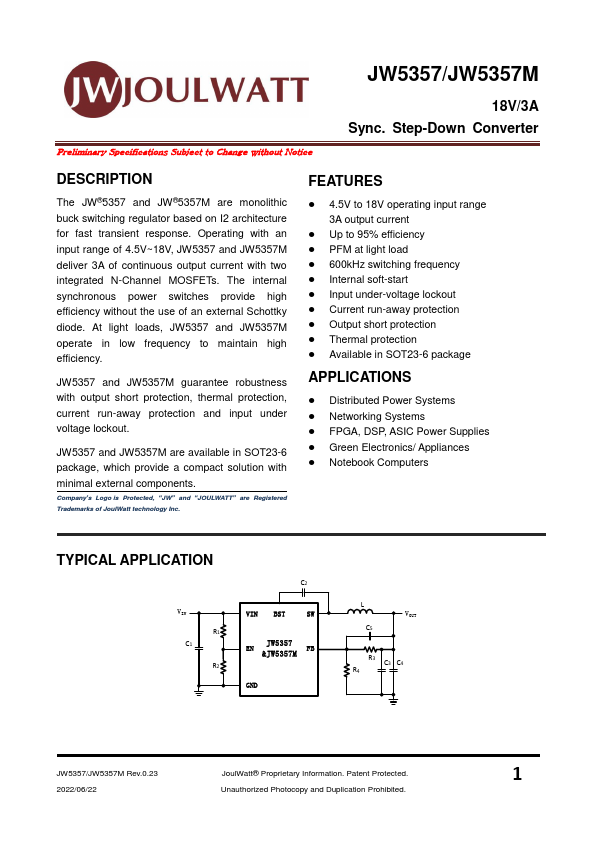

JW5357/JW5357M Preliminary Specifications Subject to Change without Notice 18V/3A Sync. Step-Down Converter DESCRIPTION The JW®5357 and JW®5357M are monolithic buck switching regulator based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5357 and JW5357M deliver 3A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, JW5357 and JW5357M operate in low frequency to maintain high efficiency. JW5357 and JW5357M guarantee robustness with output short protection, thermal protection, current run-away protection and input under voltage lockout.
