JW5359F - 18V/2A Sync. Step-Down Converter

Download the JW5359F datasheet PDF. This datasheet also covers the JW5359 variant, as both devices belong to the same 18v/2a sync. step-down converter family and are provided as variant models within a single manufacturer datasheet.

General Description

The JW®5359 and JW®5359F are monolithic buck switching regulators based on I2 architecture for fast transient response.

Operating with an input range of 4.5V~18V, JW5359 and JW5359F deliver 2A of continuous output current with two integrated N-Channel MOSFETs.

Key Features

  • 4.5V to 18V operating input range 2A output current.
  • Up to 95% efficiency.
  • FCCM at light load (JW5359F).
  • PFM at light load (JW5359).
  • 600kHz switching frequency.
  • Internal soft-start.
  • Input under-voltage lockout.
  • Current run-away protection.
  • Output short protection.
  • Thermal protection.
  • Available in SOT23-6 package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (JW5359-JoulWatt.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number JW5359F
Manufacturer JoulWatt
File Size 644.44 KB
Description 18V/2A Sync. Step-Down Converter
Datasheet download datasheet JW5359F Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
JW5026 16 Constant Current LED Driver RISETEK

Other Datasheets by JoulWatt

Part Number Description
JW5359 18V/2A Sync. Step-Down Converter
JW5357 18V/3A Sync. Step-Down Converter
JW5357M 18V/3A Sync. Step-Down Converter
JW5305 18V/5A Sync. Step-Down Converter
JW5305F 18V/5A Sync. Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

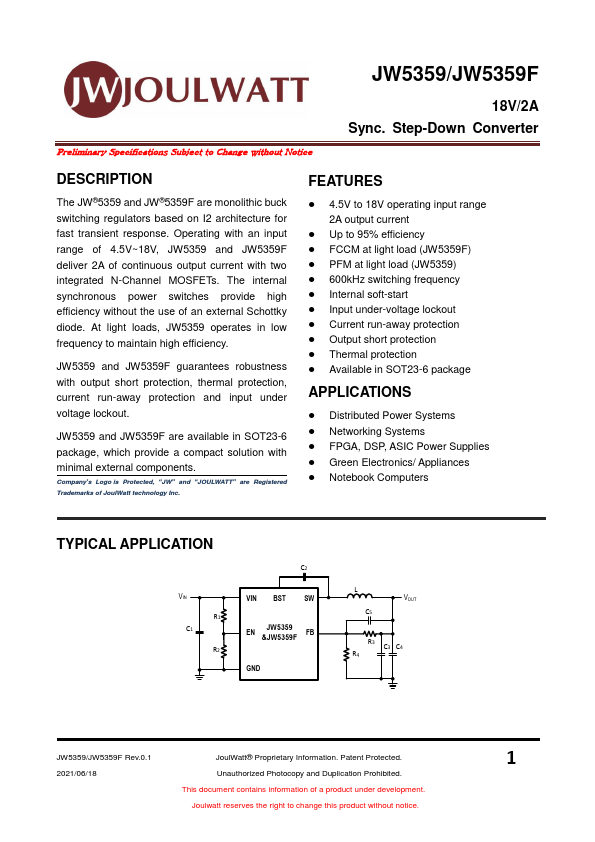

JW5359/JW5359F Preliminary Specifications Subject to Change without Notice 18V/2A Sync. Step-Down Converter DESCRIPTION The JW®5359 and JW®5359F are monolithic buck switching regulators based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5359 and JW5359F deliver 2A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, JW5359 operates in low frequency to maintain high efficiency. JW5359 and JW5359F guarantees robustness with output short protection, thermal protection, current run-away protection and input under voltage lockout.
