JW5305F - 18V/5A Sync. Step-Down Converter

Download the JW5305F datasheet PDF. This datasheet also covers the JW5305 variant, as both devices belong to the same 18v/5a sync. step-down converter family and are provided as variant models within a single manufacturer datasheet.

General Description

The JW®5305 and JW®5305F are monolithic buck switching regulators based on I2 architecture for fast transient response.

Operating with an input range of 4.5V~18V, JW5305 and JW5305F deliver 5A of continuous output current with two integrated N-Channel MOSFETs.

Key Features

  • 4.5V to 18V operating input range 5A output current.
  • 580kHz switching frequency.
  • 1% feedback voltage accuracy.
  • Internal soft-start.
  • Power good indicator.
  • PFM operation at light load (JW5305) FCCM operation at light load (JW5305F).
  • Output short protection.
  • Thermal protection.
  • Available in ESOP8 package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (JW5305-JoulWatt.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number JW5305F
Manufacturer JoulWatt
File Size 0.96 MB
Description 18V/5A Sync. Step-Down Converter
Datasheet download datasheet JW5305F Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
JW5026 16 Constant Current LED Driver RISETEK

Other Datasheets by JoulWatt

Part Number Description
JW5305 18V/5A Sync. Step-Down Converter
JW5357 18V/3A Sync. Step-Down Converter
JW5357M 18V/3A Sync. Step-Down Converter
JW5359 18V/2A Sync. Step-Down Converter
JW5359F 18V/2A Sync. Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

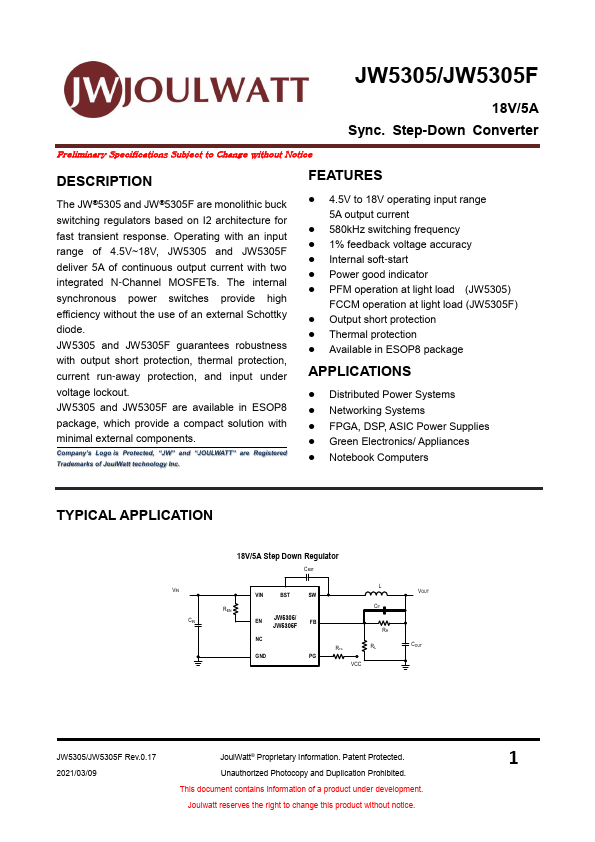

JW5305/JW5305F 18V/5A Sync. Step-Down Converter Preliminary Specifications Subject to Change without Notice DESCRIPTION The JW®5305 and JW®5305F are monolithic buck switching regulators based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5305 and JW5305F deliver 5A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. JW5305 and JW5305F guarantees robustness with output short protection, thermal protection, current run-away protection, and input under voltage lockout. JW5305 and JW5305F are available in ESOP8 package, which provide a compact solution with minimal external components.
