JW5359 - 18V/2A Sync. Step-Down Converter

Datasheet Summary

Description

The JW®5359 and JW®5359F are monolithic buck switching regulators based on I2 architecture for fast transient response.

Operating with an input range of 4.5V~18V, JW5359 and JW5359F deliver 2A of continuous output current with two integrated N-Channel MOSFETs.

Features

  • 4.5V to 18V operating input range 2A output current.
  • Up to 95% efficiency.
  • FCCM at light load (JW5359F).
  • PFM at light load (JW5359).
  • 600kHz switching frequency.
  • Internal soft-start.
  • Input under-voltage lockout.
  • Current run-away protection.
  • Output short protection.
  • Thermal protection.
  • Available in SOT23-6 package.

📥 Download Datasheet

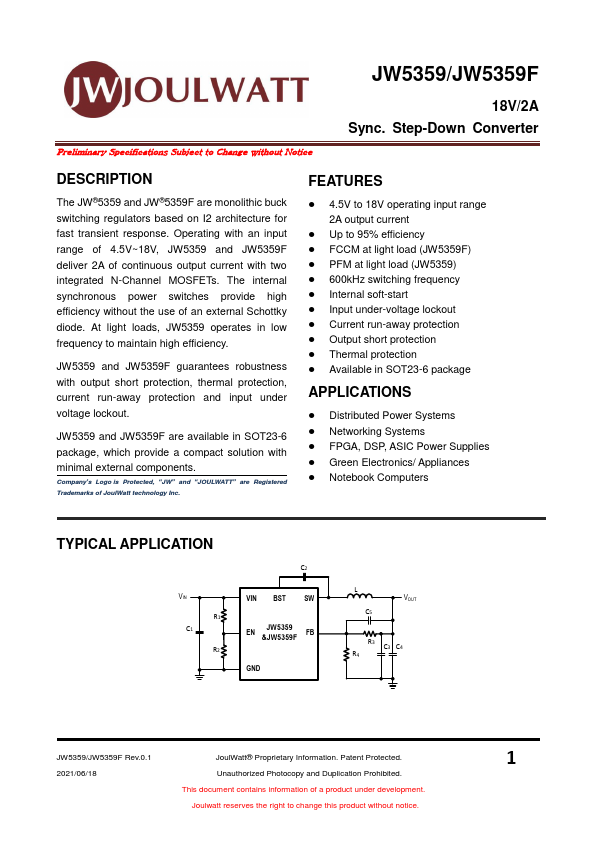

Datasheet preview – JW5359

Datasheet Details

Part number JW5359
Manufacturer JoulWatt
File Size 644.44 KB
Description 18V/2A Sync. Step-Down Converter
Datasheet download datasheet JW5359 Datasheet

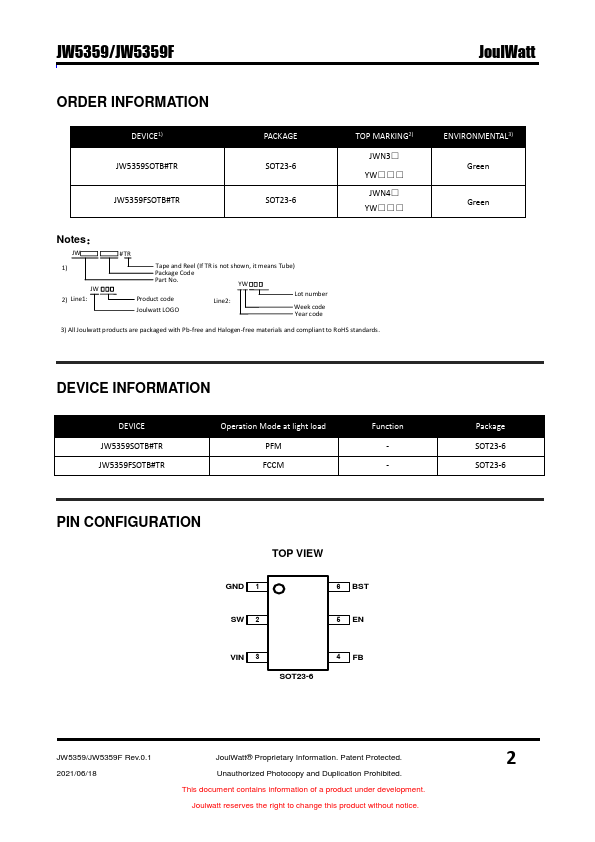

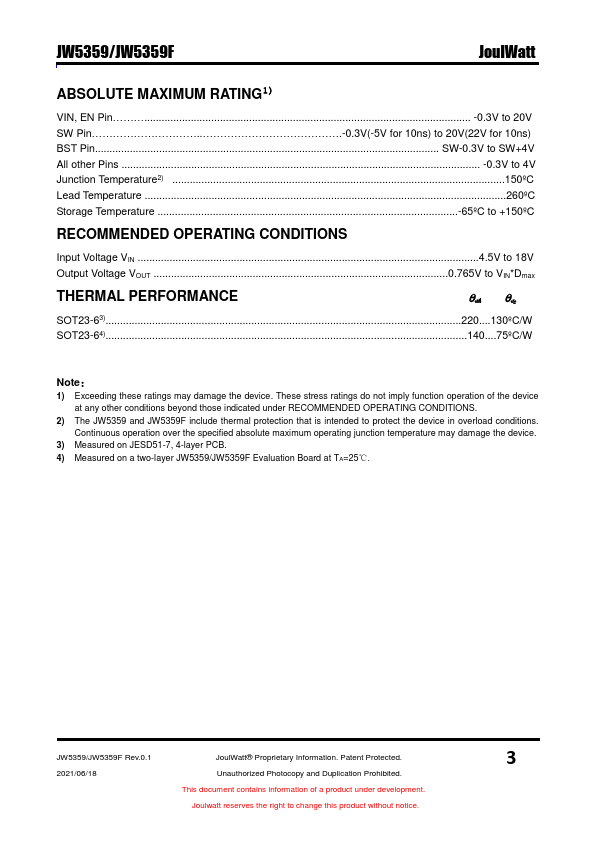

Additional preview pages of the JW5359 datasheet.

📁 Similar Datasheet

  • JW5026 - 16 Constant Current LED Driver (RISETEK)
Other Datasheets by JoulWatt
  • JW5359F - 18V/2A Sync. Step-Down Converter
  • JW5357 - 18V/3A Sync. Step-Down Converter
  • JW5357M - 18V/3A Sync. Step-Down Converter
  • JW5305 - 18V/5A Sync. Step-Down Converter
  • JW5305F - 18V/5A Sync. Step-Down Converter
  • JW5361 - 18V/3A Step-Down Converter
  • JW5361F - 18V/3A Step-Down Converter
  • JW5361FM - 18V/3A Step-Down Converter

Full PDF Text Transcription

Click to expand full text
JW5359/JW5359F Preliminary Specifications Subject to Change without Notice 18V/2A Sync. Step-Down Converter DESCRIPTION The JW®5359 and JW®5359F are monolithic buck switching regulators based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5359 and JW5359F deliver 2A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, JW5359 operates in low frequency to maintain high efficiency. JW5359 and JW5359F guarantees robustness with output short protection, thermal protection, current run-away protection and input under voltage lockout.
