JW5392 - 18V/2A Sync. Step-Down Converter

General Description

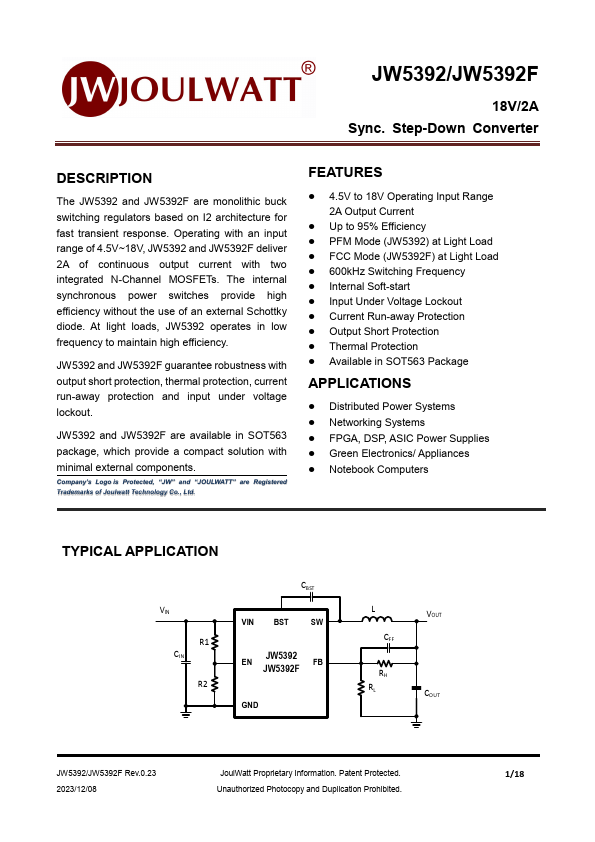

The JW5392 and JW5392F are monolithic buck switching regulators based on I2 architecture for fast transient response.

Operating with an input range of 4.5V~18V, JW5392 and JW5392F deliver 2A of continuous output current with two integrated N-Channel MOSFETs.

Key Features

  • 4.5V to 18V Operating Input Range 2A Output Current.
  • Up to 95% Efficiency.
  • PFM Mode (JW5392) at Light Load.
  • FCC Mode (JW5392F) at Light Load.
  • 600kHz Switching Frequency.
  • Internal Soft-start.
  • Input Under Voltage Lockout.
  • Current Run-away Protection.
  • Output Short Protection.
  • Thermal Protection.
  • Available in SOT563 Package.

📥 Download Datasheet

Datasheet Details

Part number JW5392
Manufacturer JoulWatt
File Size 1.66 MB
Description 18V/2A Sync. Step-Down Converter
Datasheet download datasheet JW5392 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
JW5026 16 Constant Current LED Driver RISETEK

Other Datasheets by JoulWatt

Part Number Description
JW5392F 18V/2A Sync. Step-Down Converter
JW5305 18V/5A Sync. Step-Down Converter
JW5305F 18V/5A Sync. Step-Down Converter
JW5357 18V/3A Sync. Step-Down Converter
JW5357M 18V/3A Sync. Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

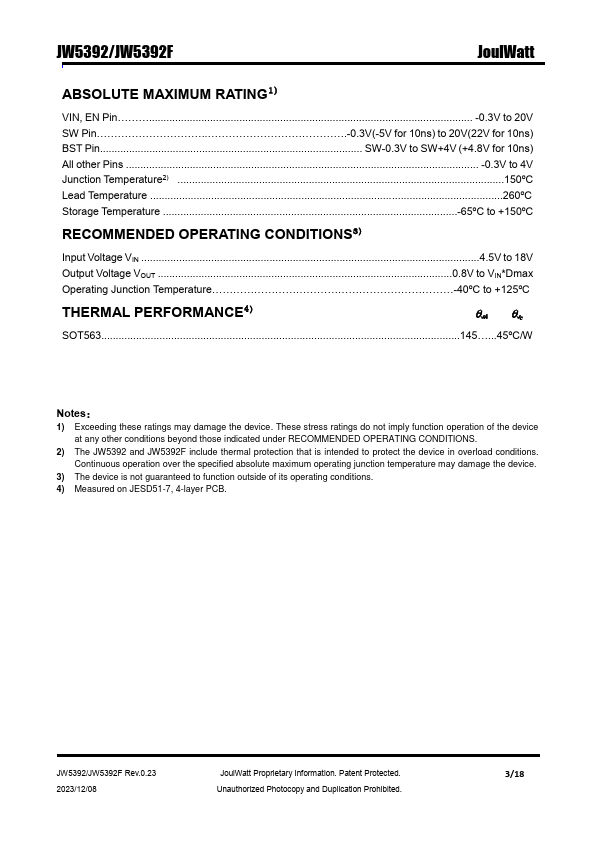

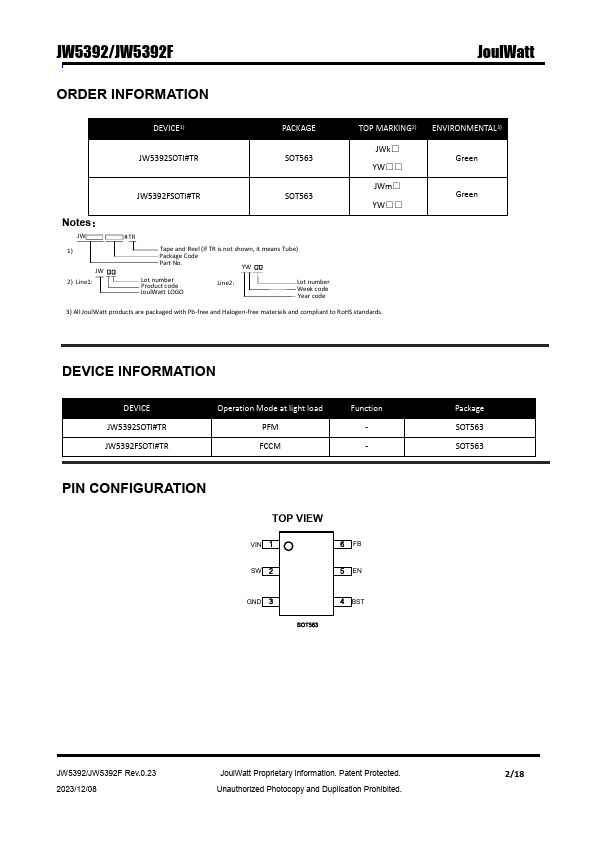

JW5392/JW5392F 18V/2A Sync. Step-Down Converter DESCRIPTION The JW5392 and JW5392F are monolithic buck switching regulators based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5392 and JW5392F deliver 2A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, JW5392 operates in low frequency to maintain high efficiency. JW5392 and JW5392F guarantee robustness with output short protection, thermal protection, current run-away protection and input under voltage lockout. JW5392 and JW5392F are available in SOT563 package, which provide a compact solution with minimal external components.
