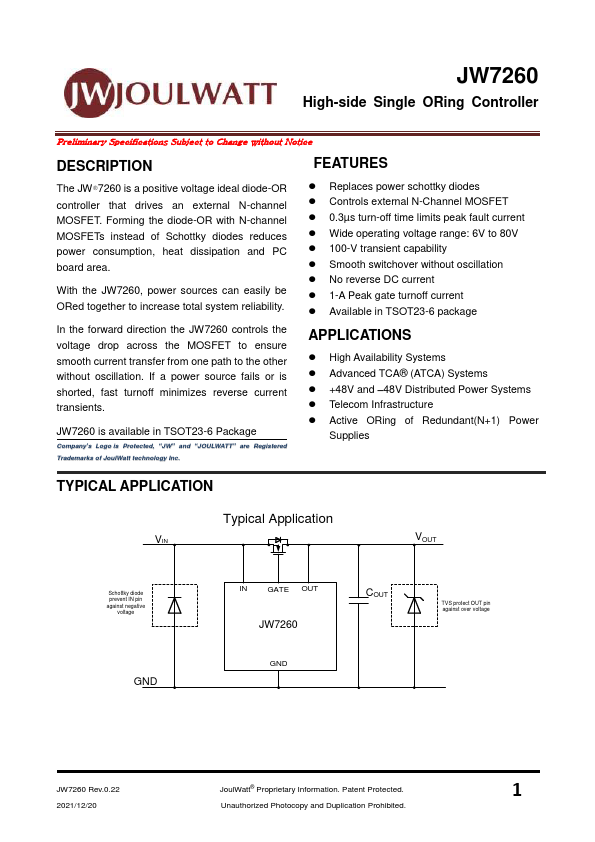

JW7260
JW7260 is High-side Single ORing Controller manufactured by JoulWatt Technology.
DESCRIPTION
The JW®7260 is a positive voltage ideal diode-OR controller that drives an external N-channel MOSFET. Forming the diode-OR with N-channel MOSFETs instead of Schottky diodes reduces power consumption, heat dissipation and PC board area.
With the JW7260, power sources can easily be ORed together to increase total system reliability.
In the forward direction the JW7260 controls the voltage drop across the MOSFET to ensure smooth current transfer from one path to the other without oscillation. If a power source fails or is shorted, fast turnoff minimizes reverse current transients.
JW7260 is available in TSOT23-6 Package pany’s Logo is Protected, “JW” and “JOULWATT” are Registered Trademarks of Joul Watt technology Inc.
FEATURES
- Replaces power schottky diodes
- Controls external N-Channel MOSFET
- 0.3µs turn-off time limits peak fault current
- Wide operating voltage range: 6V to 80V
- 100-V transient capability
- Smooth switchover without oscillation
- No reverse DC current
- 1-A Peak gate turnoff current
- Available in TSOT23-6 package
APPLICATIONS
- High Availability Systems
- Advanced TCA® (ATCA) Systems
- +48V and
- 48V Distributed Power Systems
- Tele Infrastructure
- Active ORing of Redundant(N+1) Power
Supplies
TYPICAL APPLICATION
Typical Application
V IN
VOUT
Schottky diode prevent IN pin against negative voltage
GATE OUT
COUT
TVS protect OUT pin against over voltage
JW7260 Rev.0.22
Joul Watt® Proprietary Information. Patent Protected.
2021/12/20
Unauthorized Photocopy and Duplication Prohibited.

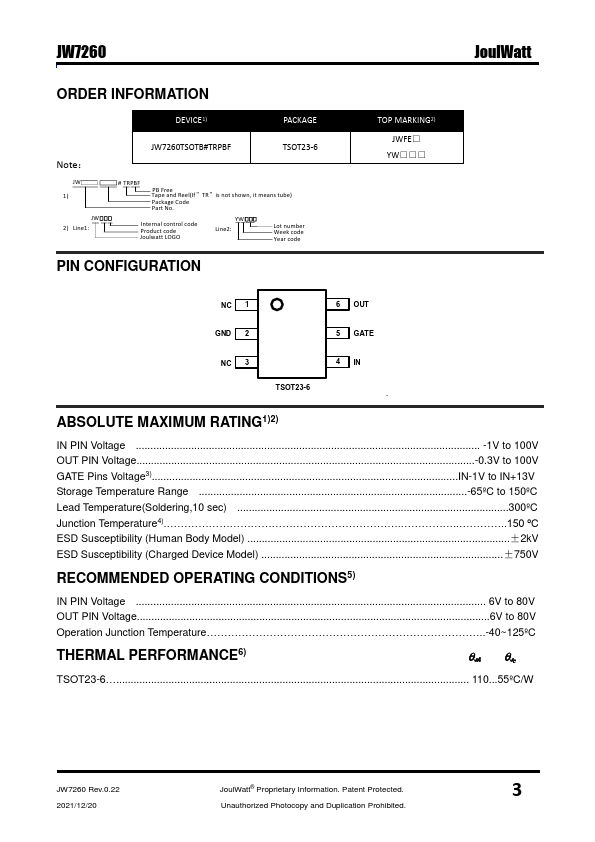

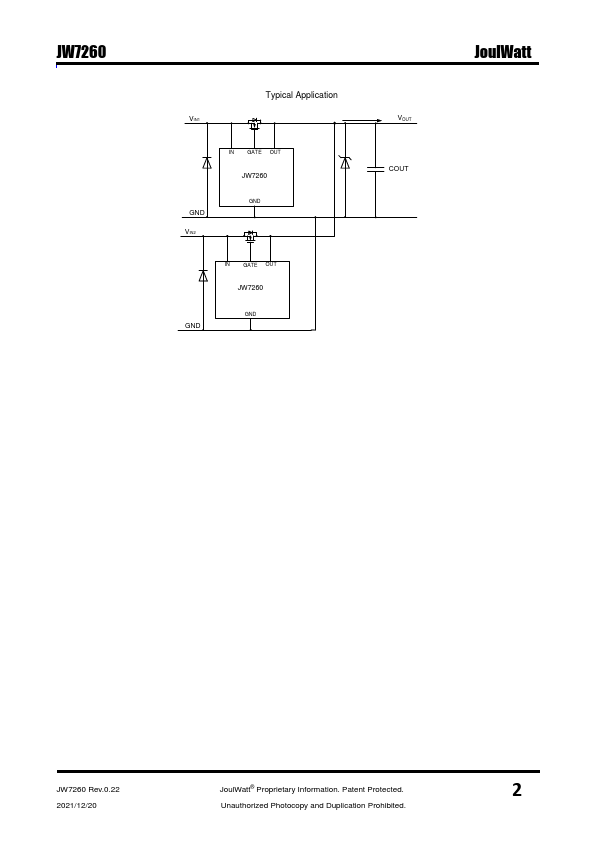

Typical Application
VIN1...
