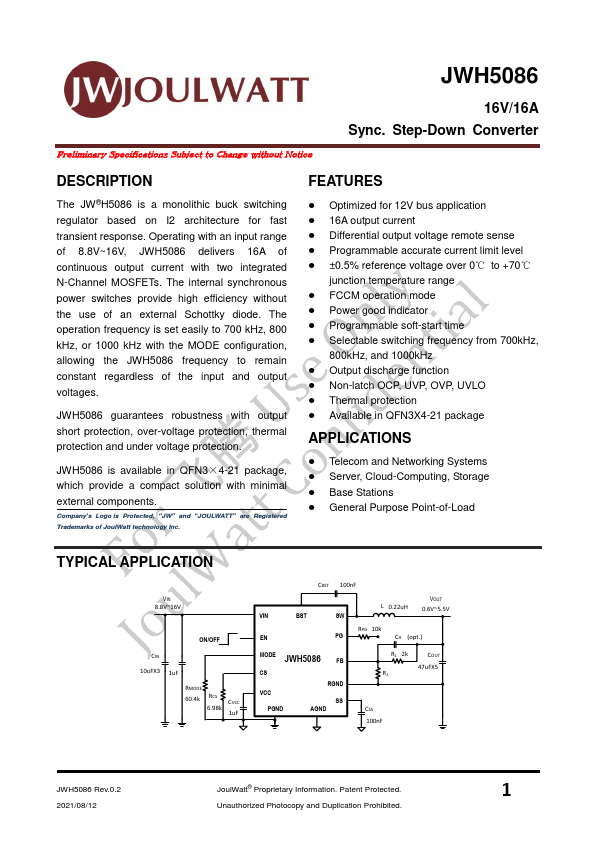

JWH5086 Overview
The JW®H5086 is a monolithic buck switching regulator based on I2 architecture for fast transient response. Operating with an input range of 8.8V~16V, JWH5086 delivers 16A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode.
JWH5086 Key Features
- Optimized for 12V bus application
- 16A output current
- Differential output voltage remote sense
- Programmable accurate current limit level
- ±0.5% reference voltage over 0℃ to +70℃
- FCCM operation mode
- Power good indicator
- Programmable soft-start time
- Selectable switching frequency from 700kHz
- Output discharge function
